AMT Pump model 3P9XZR Parts( Click Here for the AMT Pump 3P9XZR Product Page ) |
|

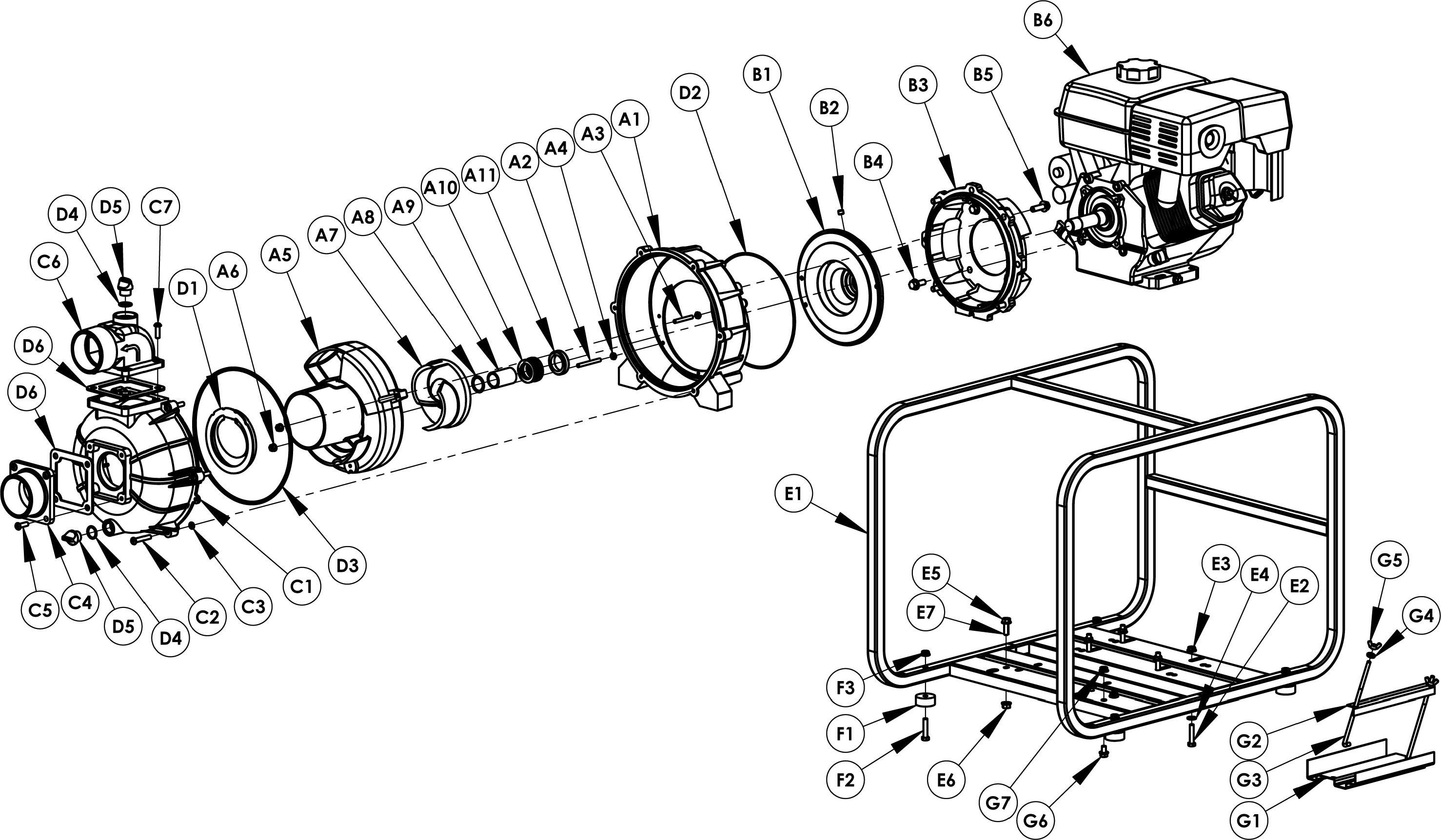

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 3P9XZR | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 3P9X | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $1272.70 | 1 in Stock | 1 | ||
| A1 | # 3P9X-030-96 | Bracket Kit, includes Bracket, Stud, Jam Nuts and Screw. | $247.50 | 2 in Stock | 1 | ||
| A5 | # 3P9X-151-95 | Volute Kit, includes Volute, and Hex Nut. | $275.00 | 2 in Stock | 1 | ||
| A7 | # 3P9X-011-96 | Impeller Kit, includes Impeller, Shim, and Shaft Sleeve. | $247.50 | 2 in Stock | 1 | ||
| A10+A11 | # 1646-421-00 | Mechanical Seal, EPR, Type 21, size 1-1/4 Inch | $62.70 | 5 in Stock | 1 | ||
| B1 | # 3S9X-020-95 | Seal Plate Kit, includes Seal Plate, and Plug. | $236.50 | 5 in Stock | 1 | ||
| B3 | # 3S9X-034-96 | Adapter Kit, includes Adapter, and Screws. | $198.00 | 2 in Stock | 1 | ||
| C1 | # 3S5X-005-96 | Casing Kit, includes Casing, and Screws. | $137.50 | 2 in Stock | 1 | ||
| C4 | # 3S5X-050-95 | Suction Flange Kit, includes Suction Flange, and Screws. | $73.70 | 2 in Stock | 1 | ||
| C6 | # 3S5X-080-95 | Discharge Manifold Kit, includes Discharge Manifold and Screws. | $121.00 | 2 in Stock | 1 | ||
| KIT | # 3S9E-300-90 | Gasket Kit EPDM, includes Check Valve, O-Rings, Plug, and Flange Gasket. | $84.70 | 20 in Stock | 1 | ||
