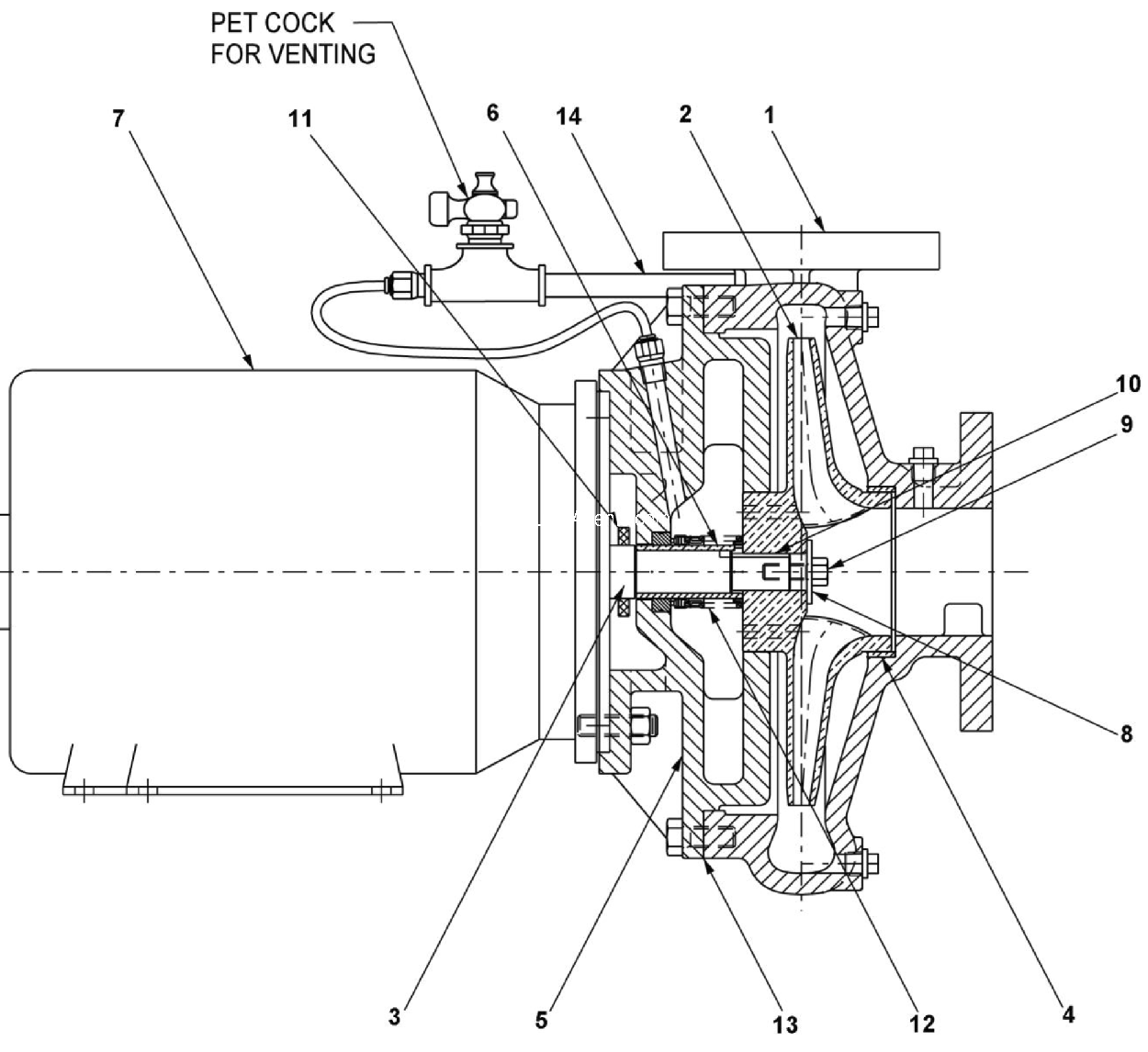

PARTS LIST for AMT Pump model # 428A-95 Pump:
( Click Here for the AMT Pump 428A-95 Product Page )
Item 1
(on image above)
Casing
Casing Kit
$ 1428.84 / each
Item 2
(on image above)
Impeller
Impeller Kit. Includes : Impeller Washer (Ref. 8), Impeller Screw (Ref. 9), Impeller Key (Ref. 10)
$ 1263.60 / each
Item 5
(on image above)
Volute Cover Kit. Includes : Volute Cover Kit (Ref. 5)
$ 800.28 / each
Item 6
(on image above)
Shaft Sleeve
$ 257.58 / each
Item 7
(on image above)
Motor
Motor, 15 Horsepower, 1750 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 254JM Frame, replacement electric motor only (pump is not included)
$ 3434.40 / each
Item 12
(on image above)
Seal
Seal & Deflector Kit. Includes : Deflector Kit (Ref. 11), Seal & Deflector Kit (Ref. 12)
$ 243.00 / each
Item 13
(on image above)
Gasket Kit
$ 118.26 / each
