AMT Pump model 4292-96 Parts

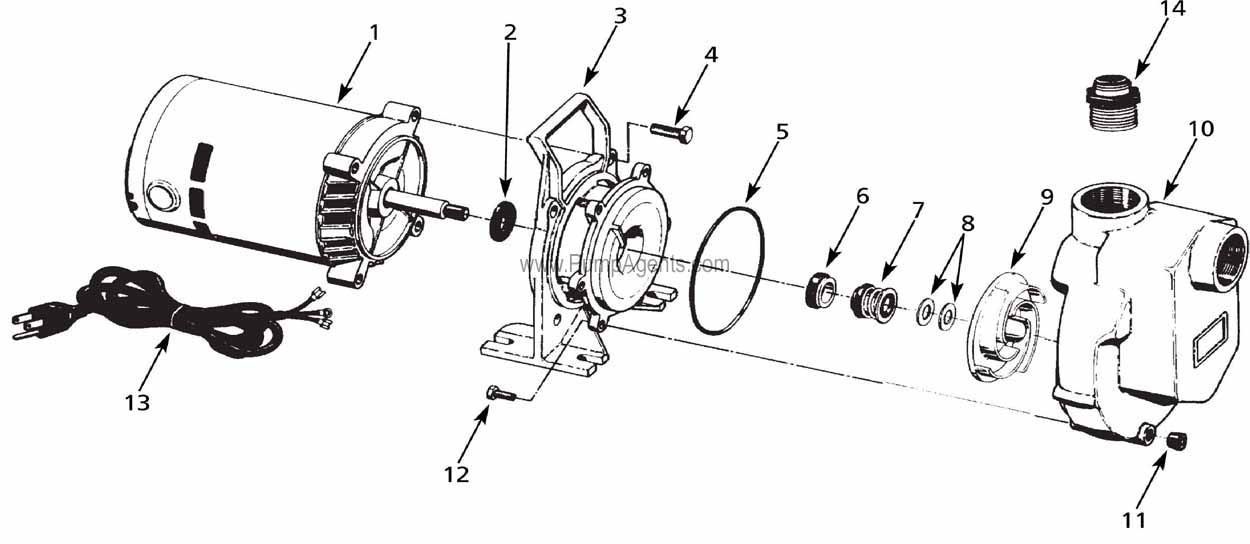

PARTS LIST for AMT Pump model # 4292-96 Pump:
( Click Here for the AMT Pump 4292-96 Product Page )
Item 1
(on image above)
Motor
Motor, 1/2 Horsepower, 115/230 Volts, 1 Phase, ODP Open Drip Proof, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
$ 322.38 / each
Item 2
(on image above)
Seal Kit
Seal Kit - Buna-N (standard). Includes : O-Ring Gasket - Buna-N (Ref. 5)
$ 35.64 / each
Item 2
(on image above)
Seal Kit - Viton (optional). Includes : O-Ring Gasket - Buna-N (Ref. 5)
$ 97.20 / each
Item 3
(on image above)
Adapter
$ 92.34 / each
Item 5
(on image above)
O-Ring Gasket - Buna-N (standard)
$ 9.72 / each
Item 5
(on image above)
O-Ring Gasket - Viton (optional)
$ 13.50 / each
Item 67
(on image above)
Seal
Mechanical Seal, Buna-N/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 24.30 / each
Item 67
(on image above)
Mechanical Seal, Viton/Carbon/Ceramic, Type 16, size 5/8 Inch
$ 58.05 / each
Item 8
(on image above)
Impeller Shim Package
$ 14.85 / each
Item 9
(on image above)
Impeller
Impeller
$ 56.70 / each
Item 10
(on image above)
Casing
Casing
$ 213.84 / each
Item 13
(on image above)
Cord Set
$ 42.12 / each
Item 14
(on image above)
1 NPT x 3/4 Garden Hose Adapter
$ 22.68 / each
