AMT Pump model 4445-95 Parts
PARTS LIST for AMT Pump model # 4445-95 Pump:
( Click Here for the AMT Pump 4445-95 Product Page )
Item 1

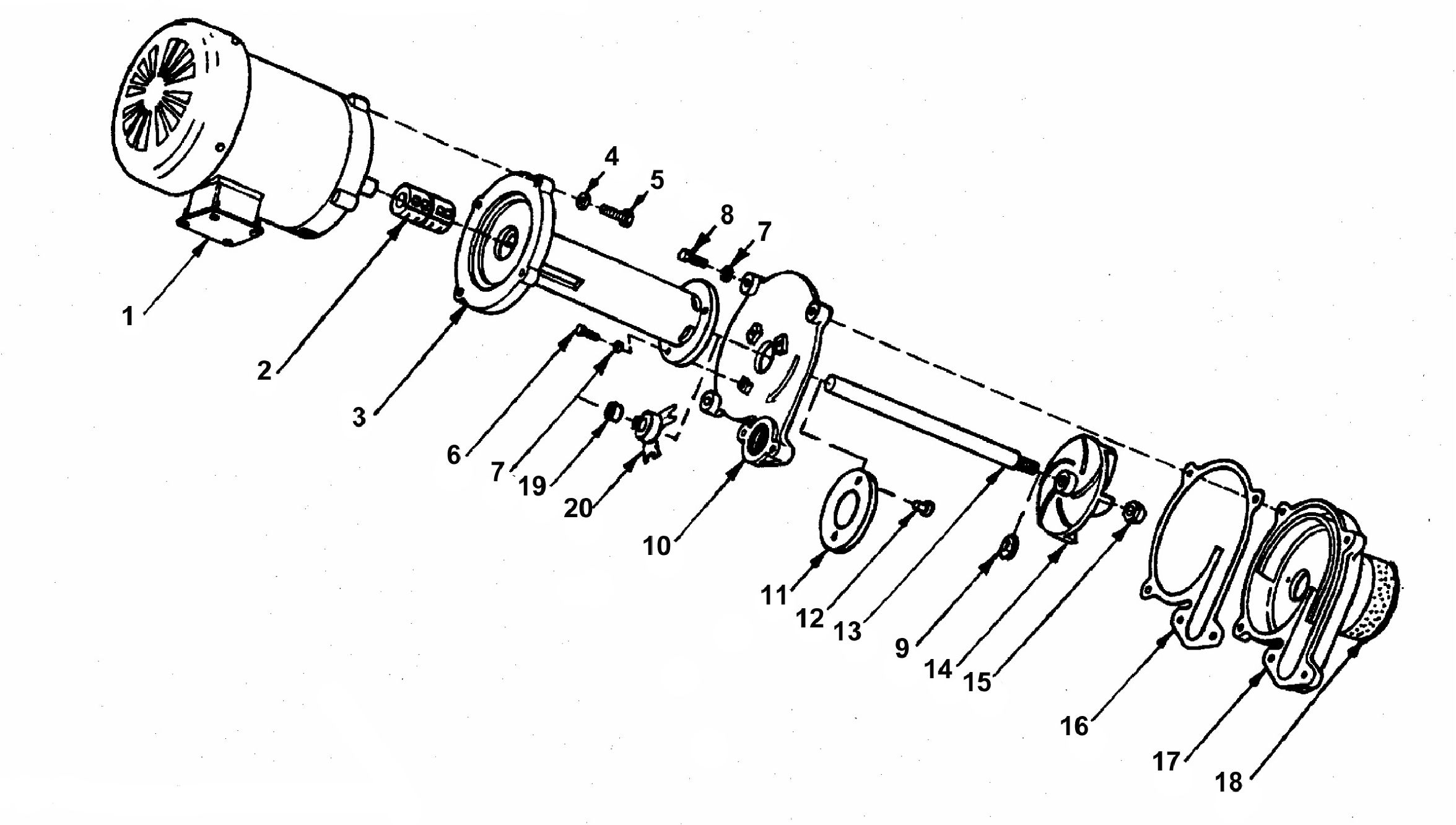

(on image above)
Motor
Motor, 3 Horsepower, 230 Volts, TEFC Totally Enclosed Fan Cooled, 60 Hz, Nema 56C Frame, replacement electric motor only (pump is not included)
$ 942.84 / each
Item 2
(on image above)
Coupling
$ 121.50 / each
Item 3
(on image above)
Column
$ 149.04 / each
Item 11
(on image above)
Volute Spacer Plate
$ 92.34 / each
Item 13
(on image above)
Shaft
$ 174.96 / each
Item 14
(on image above)
Impeller
Impeller Kit. Includes : Impeller Shim Kit (Ref. 9), Impeller Kit (Ref. 14), Impeller Nut (Ref. 15)
$ 247.86 / each
Item 15
(on image above)
Impeller Nut
$ 14.85 / each
Item 16
(on image above)
Gasket
$ 9.72 / each
Item 17
(on image above)
Volute Base Kit. Includes : Volute Base Kit (Ref. 17), Debris Screen (Ref. 18)
$ 231.66 / each
Item 20
(on image above)
Support Plate Kit. Includes : Shaft Support (Ref. 19), Support Plate Kit (Ref. 20)
$ 61.56 / each
