AMT Pump model 4787-95 Parts

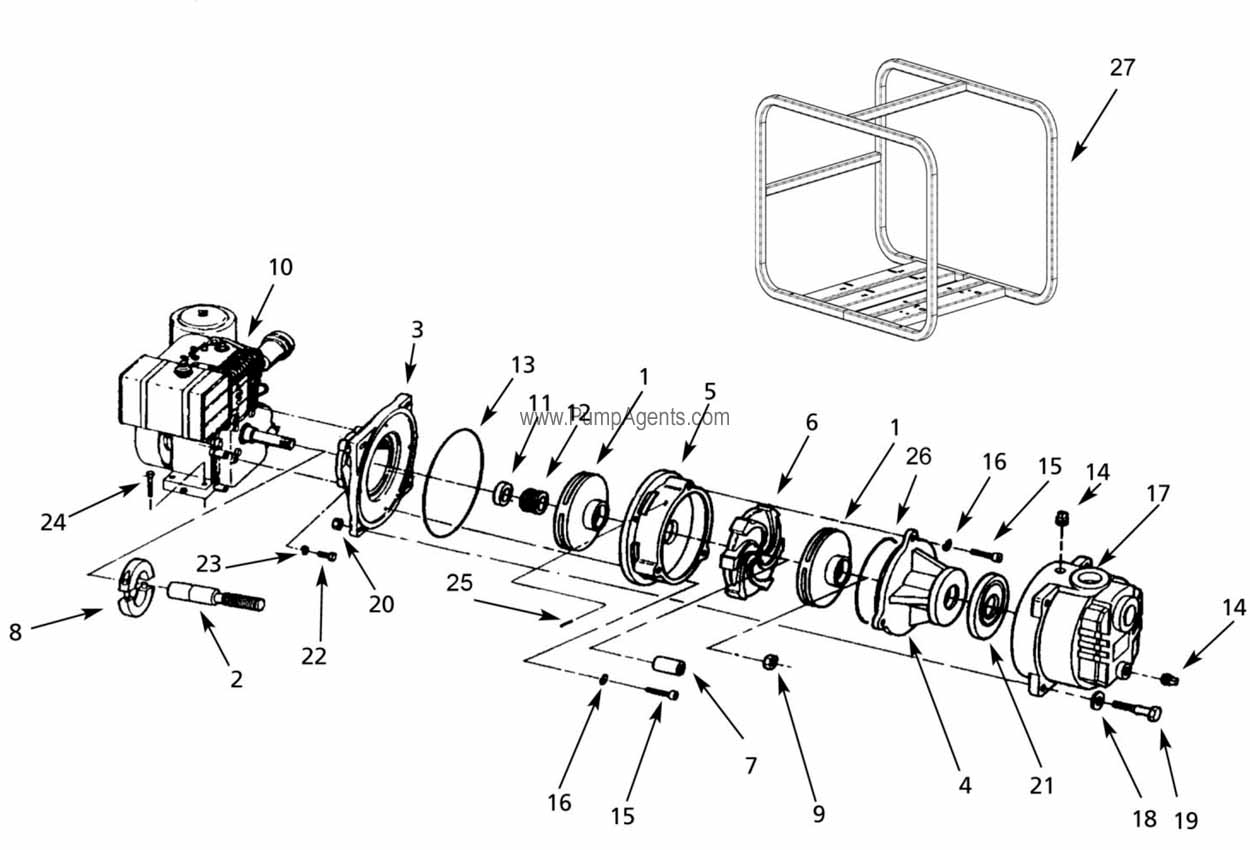

PARTS LIST for AMT Pump model # 4787-95 Pump:
( Click Here for the AMT Pump 4787-95 Product Page )
Item 2
(on image above)
Stub Shaft
$ 113.40 / each
Item 3
(on image above)
Adapter
$ 207.36 / each
Item 4
(on image above)
Suction Inlet
$ 231.66 / each
Item 5
(on image above)
Diffuser
$ 265.68 / each
Item 6
(on image above)
Diffuser/Crossover
$ 199.26 / each
Item 7
(on image above)
Shaft Sleeve
$ 34.02 / each
Item 8
(on image above)
Collar
$ 94.50 / each
Item 9
(on image above)
1/2-20 UNF Hex Nut
$ 21.06 / each
Item 10
(on image above)
Engine - 4787
$ 664.20 / each
Item 1112
(on image above)
Seal
Mechanical Seal, Buna-N, Type 21, size 3/4 Inch
$ 30.78 / each
Item 13
(on image above)
Casing Seal - Buna N
$ 16.20 / each
Item 21
(on image above)
Suction Gasket - Buna N
$ 34.02 / each
Item 25
(on image above)
#4 x 5/16 Drive Pin
$ 9.72 / each
Item 26
(on image above)
Diffuser Seal - Buna N
$ 9.72 / each
