AMT Pump model 4873-95 Parts

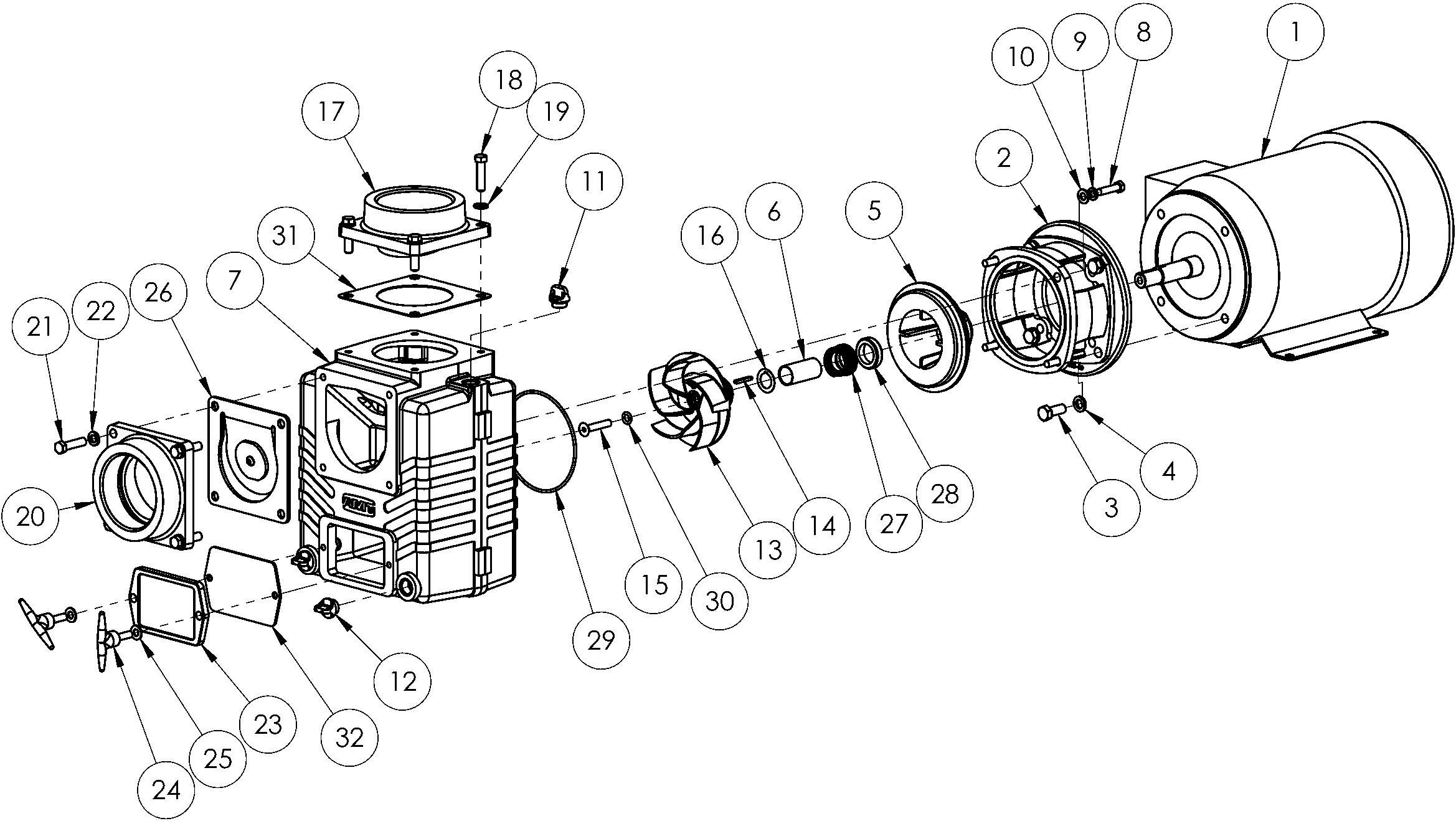

PARTS LIST for AMT Pump model # 4873-95 Pump:
( Click Here for the AMT Pump 4873-95 Product Page )
Item 1
(on image above)
Motor
Motor, 10 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60 Hz Nema 215JM Frame, 60HZ Nema 215JM Frame, replacement electric motor only (pump is not included)
$ 3222.18 / each
Item 2
(on image above)
Adapter Kit. Includes : Adapter Kit (Ref. 2), Hex Head Screw (Ref. 3), Lock Washer (Ref. 4), Casing Cover (Ref. 5), Shaft Sleeve (Ref. 6)
$ 648.00 / each
Item 7
(on image above)
Casing
Casing Kit. Includes : Casing Kit , (Ref. 7), Hex Head Screw (Ref. 8), Lock Washer (Ref. 9), Flat Washer (Ref. 10), 1/2 NPT Fill Plug (Ref. 11), 1/2 NPT Drain Plug (Ref. 12)
$ 1053.00 / each
Item 13
(on image above)
Impeller
Impeller Kit. Includes : Impeller Kit (Ref. 13), Shaft Key (Ref. 14), Impeller Screw (Ref. 15), Impeller Shim Kit (Ref. 16)
$ 578.34 / each
Item 17
(on image above)
Discharge Flange Kit. Includes : Discharge Flange Kit (Ref. 17), Hex Head Screw (Ref. 18), Lock Washer (Ref. 19)
$ 289.98 / each
Item 20
(on image above)
Suction Flange Kit. Includes : Suction Flange Kit (Ref. 20), Hex Head Screw (Ref. 21), Lock Washer (Ref. 22)
$ 289.98 / each
Item 23
(on image above)
Cleanout Cover Kit. Includes : Cleanout Cover Kit (Ref. 23), Hex Head Screw (Ref. 24), Flat Washer (Ref. 25)
$ 98.82 / each
Item 26
(on image above)
Check Valve Assembly - Neoprene
$ 82.62 / each
Item 26
(on image above)
Check Valve Assembly - Viton (optional)
$ 165.24 / each
Item 26
(on image above)
Check Valve Assembly - EPDM (optional)
$ 82.62 / each
Item 2728
(on image above)
Seal
Mechanical Seal, Buna-N/Carbon/Ceramic, Type 21, size 1-1/8 Inch
$ 44.55 / each
Item 2728
(on image above)
Mechanical Seal, Viton/Silicon Carbide, Type 31, size 1-1/8 Inch
$ 176.85 / each
Item 2728
(on image above)
Mechanical Seal, Viton/Carbon/Ceramic, Type 21, size 1-1/8 Inch
$ 93.96 / each
Item 2728
(on image above)
Mechanical Seal, EPR, Type 21, size 1-1/8 Inch
$ 92.34 / each
Item KIT
(on image above)
Gasket Kit - Buna/Neoprene. Includes : Casing O-Ring (Ref. 29), Impeller O-Ring (Ref. 30), Flange Gasket (Ref. 31), Cleanout Gasket (Ref. 32)
$ 40.50 / each
Item KIT
(on image above)
Gasket Kit - Viton (optional). Includes : Casing O-Ring (Ref. 29), Impeller O-Ring (Ref. 30), Flange Gasket (Ref. 31), Cleanout Gasket (Ref. 32)
$ 136.08 / each
Item KIT
(on image above)
Gasket Kit - EPDM (optional). Includes : Casing O-Ring (Ref. 29), Impeller O-Ring (Ref. 30), Flange Gasket (Ref. 31), Cleanout Gasket (Ref. 32)
$ 48.60 / each
