AMT Pump model 489C-95 Parts
PARTS LIST for AMT Pump model # 489C-95 Pump:

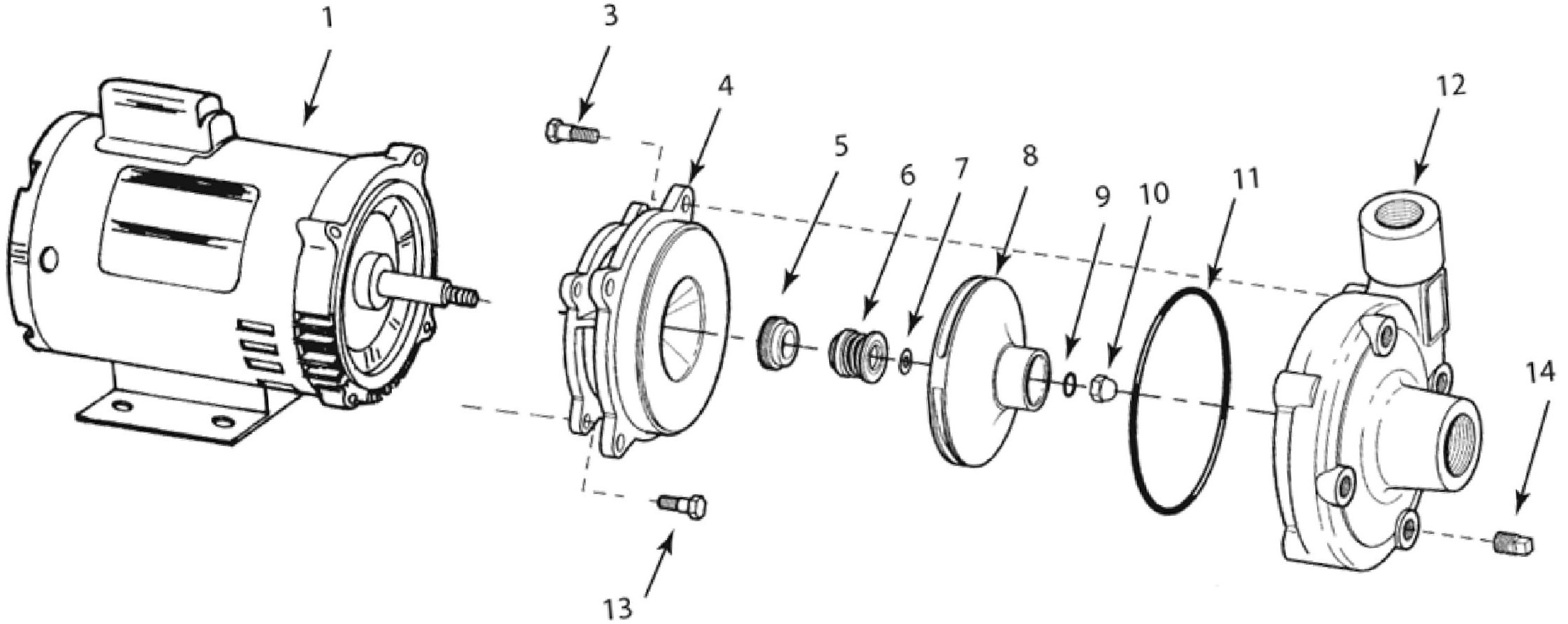

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the AMT Pump 489C-95 Product Page )
Item 1
(on image above)
Motor
Motor, 3/4 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)
$ 542.70 / each
Item 56
(on image above)
Seal
Mechanical Seal, Buna-N, Type 21, size 5/8 Inch
$ 24.30 / each
Item 7
(on image above)
Impeller Shim Set
$ 8.10 / each
Item 9
(on image above)
Impeller Seal - Buna N
$ 9.72 / each
Item 10
(on image above)
Impeller Fastener
$ 14.85 / each
Item 11
(on image above)
Casing Seal - Buna N
$ 16.20 / each
Item 12
(on image above)
Casing
Casing - Cast Iron
$ 231.66 / each
