AMT Pump model 4S14KLR Parts( Click Here for the AMT Pump 4S14KLR Product Page ) |
|

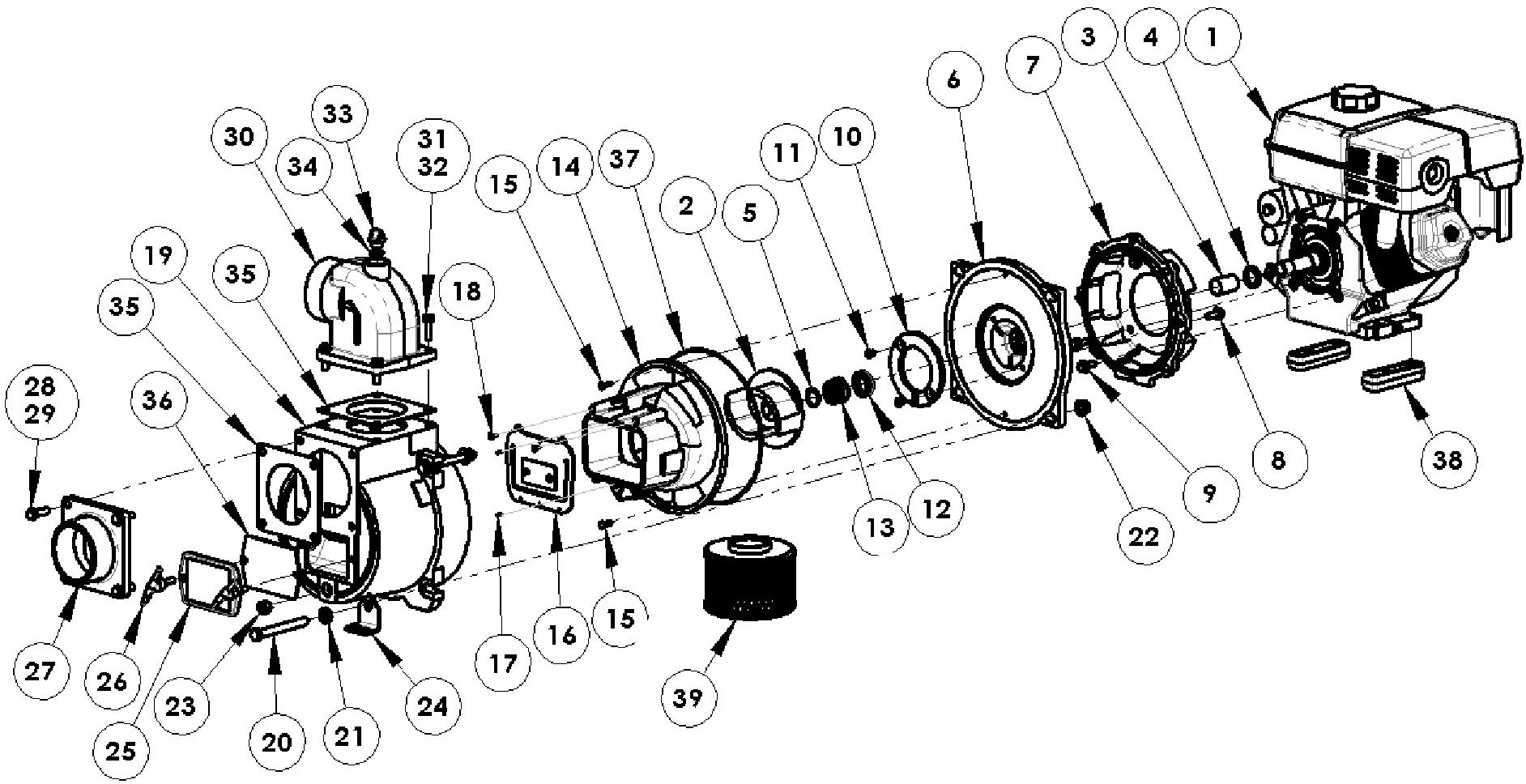

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 4S14KLR | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 2 | # 3945-013-95 | Impeller Kit, includes Impeller, Shaft Sleeve, Shaft Flange, and Impeller Shim Kit. | $209.00 | 2 in Stock | 1 | ||
| 5 | # 1656-000-90 | Impeller Shim Kit | $12.10 | 2 in Stock | 1 | ||
| 6 | # 3993-020-96 | Casing Cover Kit, includes Casing, Adapter, and Hex Screws. | $448.80 | 5 in Stock | 1 | ||
| 10 | # 2182-004-90 | Wear Plate Kit, includes Wear Plate, and Flat Head Screws. | $82.50 | 2 in Stock | 1 | ||
| 12+13 | # 1640-163-94 | Mechanical Seal, Viton/Carbon/Silicon Carbide, Type 21, size 1-1/8 Inch | $119.90 | 5 in Stock | 1 | ||
| 14 | # 399C-150-95 | Volute Kit, includes Volute, and Hex Screws. | $301.40 | 2 in Stock | 1 | ||
| 16 | # 399C-076-90 | Check Valve Kit-EPR/EPDM (standard), includes Check Valve, Retainer Pins, and Screws. | $77.00 | 2 in Stock | 1 | ||
| 19 | # 399C-002-96 | Casing Kit, includes Casing, Hex Bolts, Flat Washers, Hex Nuts, and Plug. | $897.60 | 2 in Stock | 1 | ||
| 24 | # 3993-109-90 | Casing Foot Kit, includes 2 feet and mounting hardware. | $49.50 | 2 in Stock | 1 | ||
| 25 | # 399C-040-95 | Clean Out Cover Kit, includes Clean Out Cover, and Handle Studs. | $88.00 | 2 in Stock | 1 | ||
| 27 | # 3993-050-95 | Suction Flange Kit, includes Suction Flange, Hex Screws, and Lock Washers. | $196.90 | 2 in Stock | 1 | ||
| 30 | # 3993-080-95 | Discharge Manifold Kit, includes Discharge Manifold, Hex Screws, and Lock Washers. | $269.50 | 2 in Stock | 1 | ||
| 33 | # 3SXE-170-90 | Fill Plug Kit-EPR/EPDM oring (standard), includes Fill Plug, and O-Ring. | $9.90 | 2 in Stock | 1 | ||
