AMT Pump model 5022-95 Parts( Click Here for the AMT Pump 5022-95 Product Page ) |
|

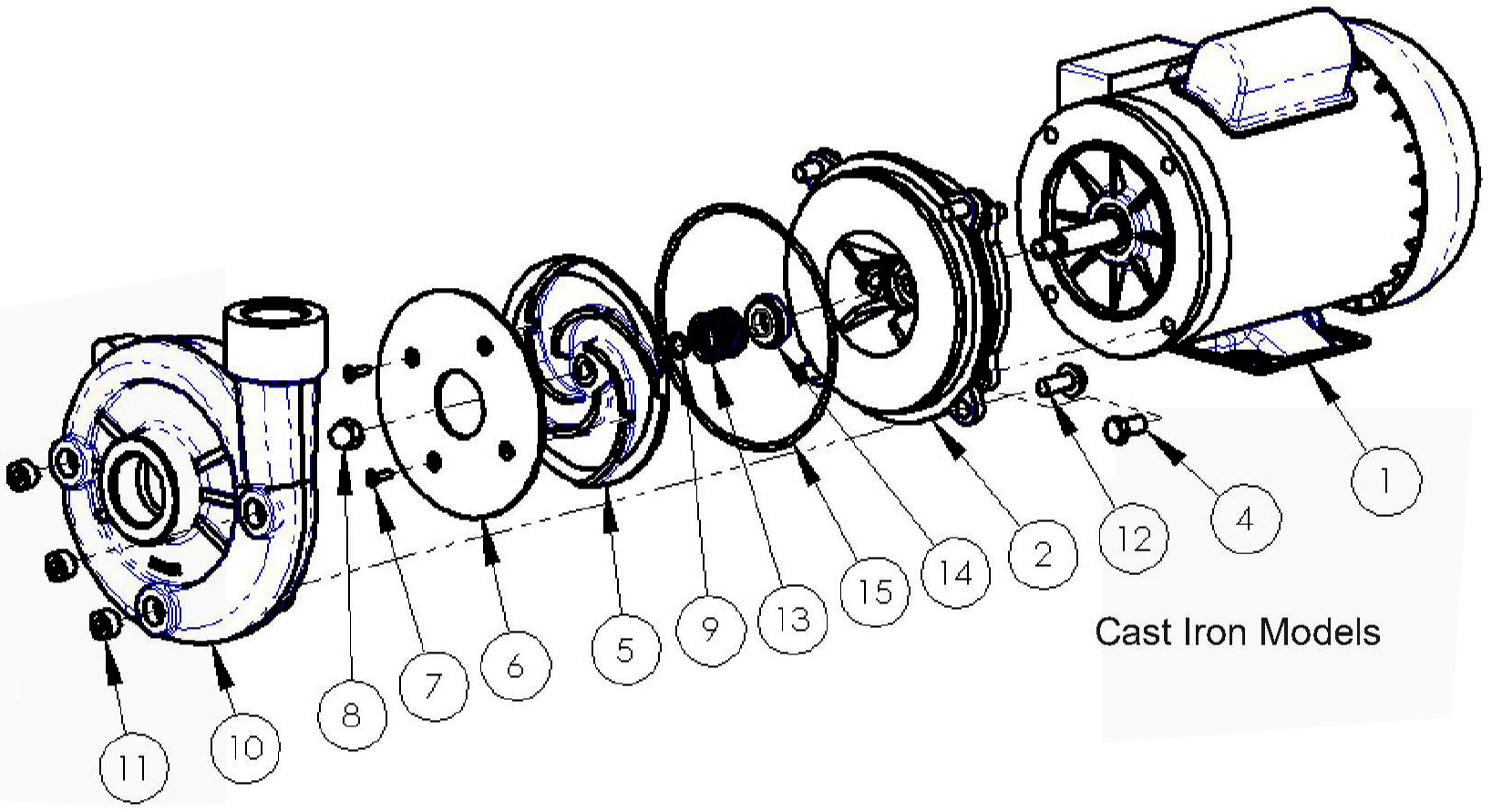

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 5022-95 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1626-303-00 | Motor, 1 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included) | $490.60 | 1 in Stock | 1 | ||
| 2 | # 5020-030-95 | Adapter Kit, includes Adapter, and Hex Screws. | $104.50 | 2 in Stock | 1 | ||
| 5 | # 5022-010-98 | Impeller Kit, includes Impeller, Impeller Shroud, Impeller Shroud Screws, Impeller Lock Nut, and Impeller Shims. | $192.50 | 2 in Stock | 1 | ||
| 10 | # 5020-001-95 | Casing Kit, includes Casing, Plugs, and Hex Screws. | $165.00 | 2 in Stock | 1 | ||
| 13+14 | # 1640-165-90 | Mechanical Seal, Viton/Silicon Carbide, Type 21, size 5/8 Inch | $77.00 | 5 in Stock | 1 | ||
| KIT | # 5020-301-90 | O-Ring Kit - Viton (standard) | $13.20 | 20 in Stock | 1 | ||
| NS | # 3890-091-99 | Pedestal Assembly (not shown) | $253.00 | 2 in Stock | 1 | ||
