AMT Pump model 5031-98 Parts( Click Here for the AMT Pump 5031-98 Product Page ) |
|

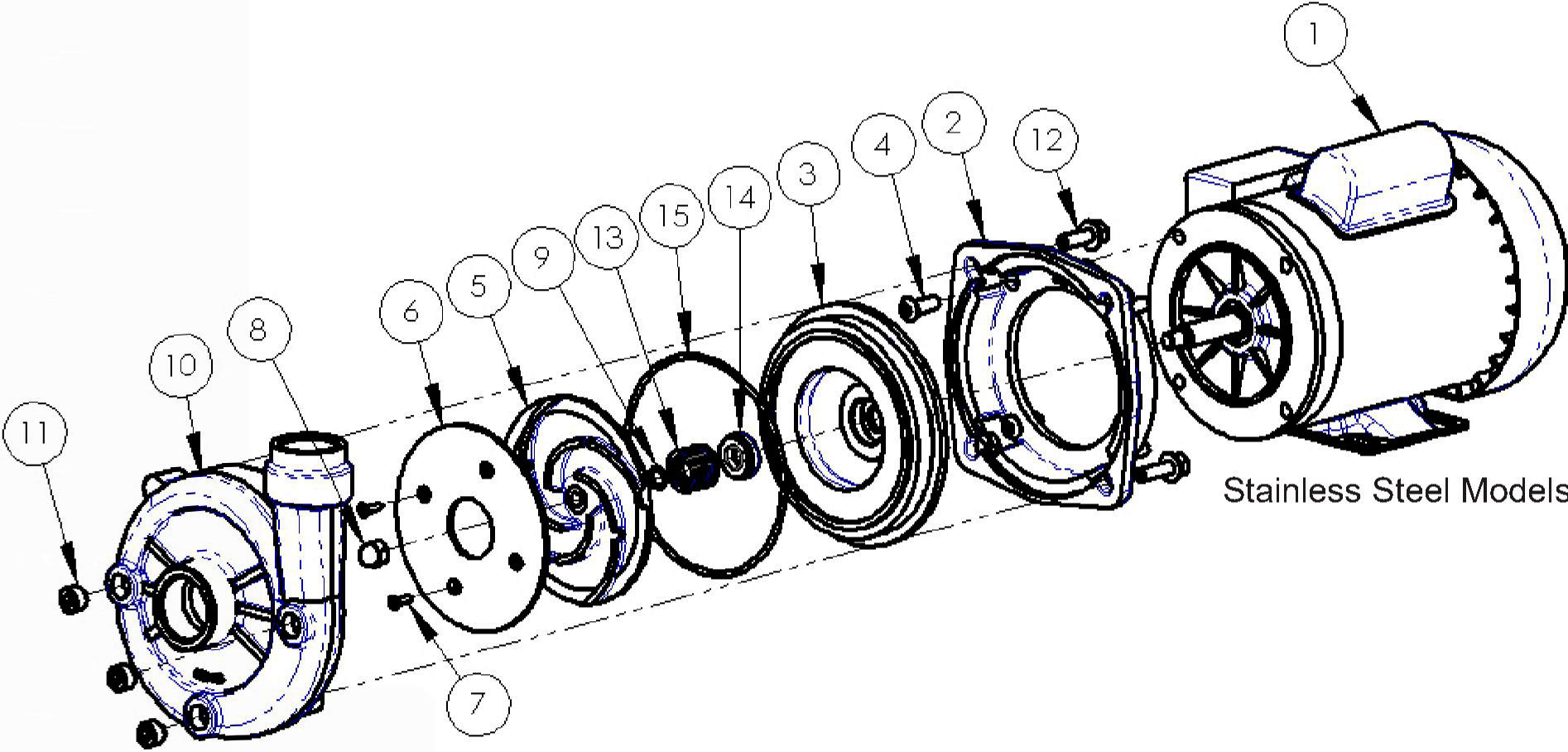

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 5031-98 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| PUMP | # 5031-K8 | Pump End only, less motor. Complete pump end rebuild kit for building onto existing motor. | $1273.80 | 1 in Stock | 1 | ||
| 1 | # 1626-306-00 | Motor, 3 Horsepower, 208-230/220 Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric motor only (pump is not included) | $850.30 | 1 in Stock | 1 | ||
| 2 | # 5030-030-98 | Adapter Kit, includes Adapter, Seal Plate, and Hex Screws. | $322.30 | 2 in Stock | 1 | ||
| 5 | # 5030-010-98 | Impeller Kit, includes Impeller, Impeller Shroud, Impeller Shroud Screws, Impeller Lock Nut, and Impeller Shims. | $240.90 | 2 in Stock | 1 | ||
| 10 | # 5030-002-98 | Casing Kit, includes Casing, Plugs, and Hex Screws. | $638.00 | 2 in Stock | 1 | ||
| 13+14 | # 1640-165-90 | Mechanical Seal, Viton/Silicon Carbide, Type 21, size 5/8 Inch | $77.00 | 5 in Stock | 1 | ||
| KIT | # 5030-301-90 | O-Ring Kit - Viton (standard) | $13.20 | 20 in Stock | 1 | ||
| NS | # 3890-091-99 | Pedestal Assembly (not shown) | $253.00 | 2 in Stock | 1 | ||
