AMT Pump model 5475-98 Parts |
|

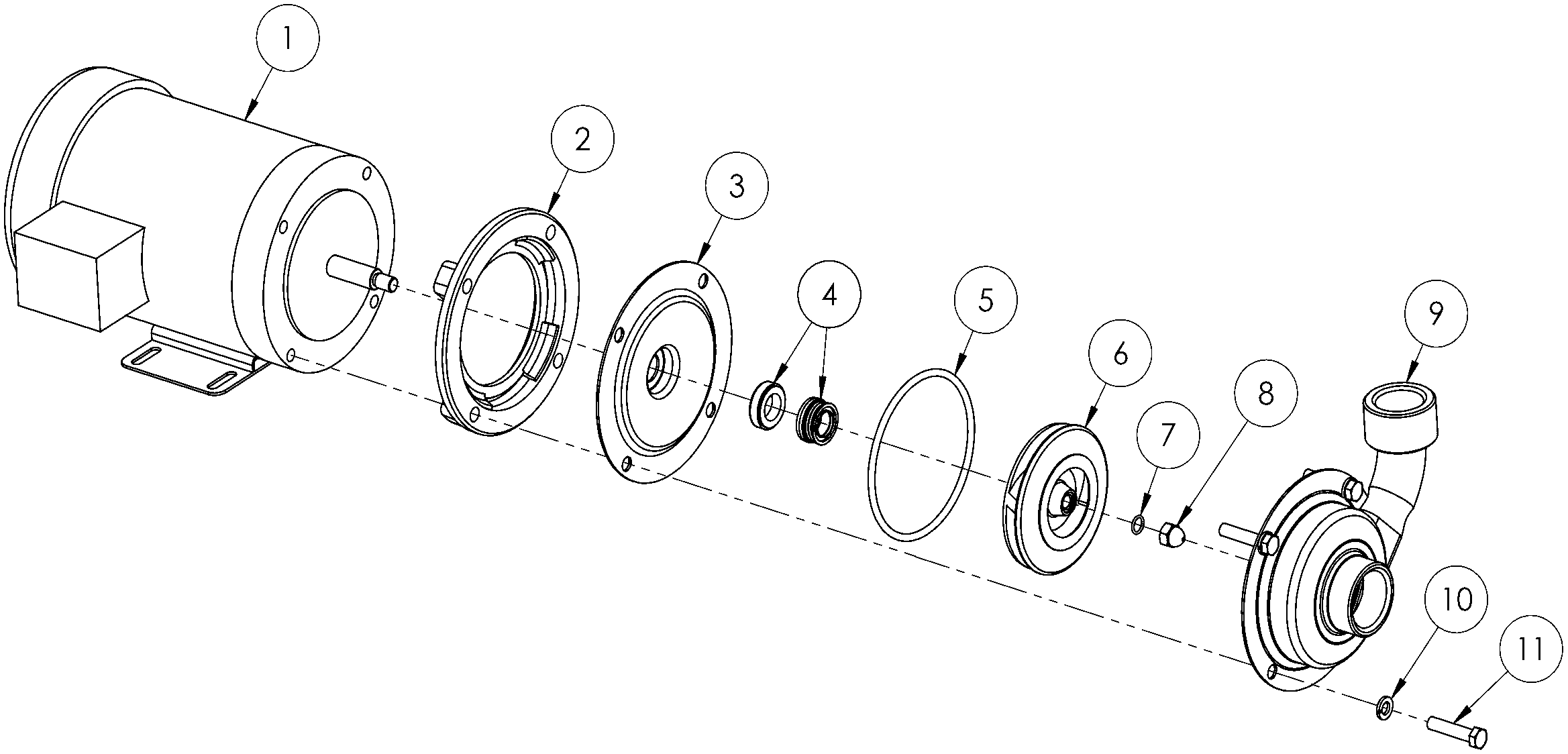

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 5475-98 | |||||||
| Key | SKU | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | 1626-009-00 | Motor, 1/2 Horsepower, 115/230 Volts, 1 Phase, ODP Open Drip Proof, 60/50 Hz, Nema 56J Frame, replacement electric jet pump motor only (pump is not included) | $322.38 | 2 in Stock | 1 | ||
| 2 | 5470-030-09 | Adapter | $98.82 | 2 in Stock | 1 | ||
| 5 | 5470-020-00 | Casting Cover | $165.24 | 2 in Stock | 1 | ||
| 6 | 1640-162-98 | Mechanical Seal, Viton, Type 21, size 3/4 Inch | $48.60 | 2 in Stock | 1 | ||
| 7 | 5475-010-98 | Impeller Kit. Includes : Impeller Kit (Ref. 7), Impeller Nut (Ref. 9) | $205.74 | 2 in Stock | 1 | ||
| 9 | 1784-001-00 | Impeller Nut | $14.85 | 2 in Stock | 1 | ||
| 11 | 5475-001-98 | Casing Kit. Includes : Casing Kit (Ref. 11), Washer (Ref. 12), Fastener (Ref. 13) | $346.68 | 2 in Stock | 1 | ||
| 14 | 5470-300-91 | Seal Kit - Viton (standard). Includes : Shaft Seal Assembly - Viton (Ref. 6), Impeller Seal - Viton (Ref. 8), Casing Seal - Viton (Ref. 10) | $64.80 | 2 in Stock | 1 | ||
| 14 | 5470-300-90 | Seal Kit- Buna-N (optional) | $43.74 | 2 in Stock | 1 | ||
