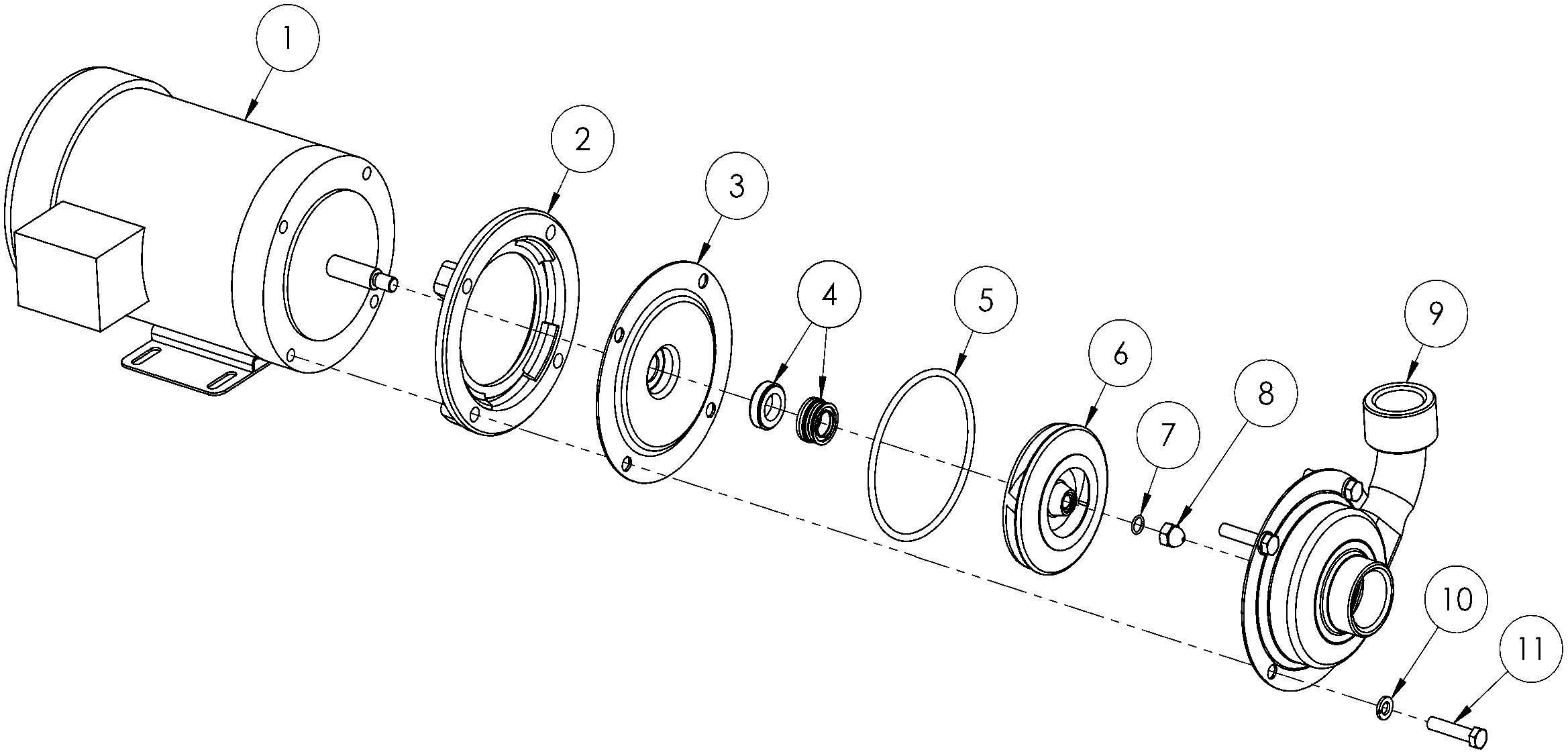

Parts for AMT Pump model # 5481-98

Item 1
(on image above)

Motor

Motor, 1 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included)

$ 529.74 / each

Item 2
(on image above)

Part # 5470-030-09

Adapter

$ 98.82 / each

Item 5
(on image above)

Part # 5470-020-00

Casting Cover

$ 165.24 / each

Item 6
(on image above)

Part # 1640-162-98

Seal

Mechanical Seal, Viton, Type 21, size 3/4 Inch

$ 48.60 / each

Item 7
(on image above)

Part # 5470-010-98

Impeller

Impeller Kit. Includes : Impeller Kit (Ref. 7), Impeller Nut (Ref. 9)

$ 212.22 / each

Item 9
(on image above)

Part # 1784-001-00

Impeller Nut

$ 14.85 / each

Item 11
(on image above)

Part # 5480-001-98

Casing

Casing Kit. Includes : Casing Kit (Ref. 11), Washer (Ref. 12), Fastener (Ref. 13)

$ 362.88 / each

Item 14
(on image above)

Part # 5470-300-91

Seal Kit

Seal Kit - Viton (standard). Includes : Shaft Seal Assembly - Viton (Ref. 6), Impeller Seal - Viton (Ref. 8), Casing Seal - Viton (Ref. 10)

$ 64.80 / each

Item 14
(on image above)

Part # 5470-300-90

Seal Kit- Buna-N (optional)

$ 43.74 / each

AMT Pump model 5481-98 Parts
