AMT Pump # 5535-98 Parts Order page( Click Here for the AMT Pump # 5535-98 Product Page ) |
|

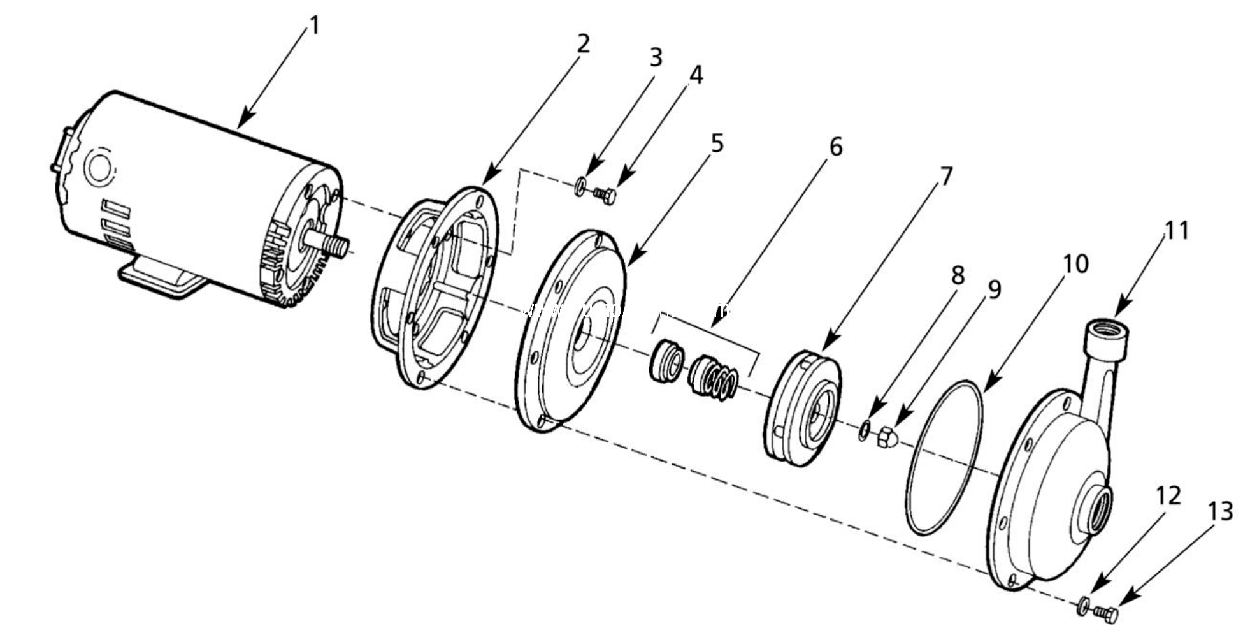

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 5535-98 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1626-305-00 | Motor, 2 Horsepower, 1 Phase, TEFC Totally Enclosed Fan Cooled, 60/50 Hz 56J, Nema 56J Frame, replacement electric jet pump motor only (pump is not included) | $708.40 | 1 in Stock | 1 | ||
| 2 | # 5530-021-09 | Adapter | $84.70 | 2 in Stock | 1 | ||
| 5 | # 5530-020-00 | Casting Cover | $129.80 | 2 in Stock | 1 | ||
| 6 | # 1640-161-97 | Mechanical Seal, Viton, Type 21, size 5/8 Inch | $44.00 | 6 in Stock | 1 | ||
| 7 | # 5534-011-98 | Impeller Kit. Includes : Impeller Kit (Ref. 7), Impeller Nut (Ref. 9) | $222.20 | 2 in Stock | 1 | ||
| 9 | # 1784-001-00 | Impeller Nut | $12.10 | 2 in Stock | 1 | ||
| 11 | # 5530-001-98 | Casing Kit. Includes : Casing Kit (Ref. 11), Washer (Ref. 12), Fastener (Ref. 13) | $409.20 | 2 in Stock | 1 | ||
| 14 | # 5530-300-91 | Seal Kit - Viton (standard). Includes : Shaft Seal Assembly - Viton (Ref. 6), Impeller Seal - Viton (Ref. 8), Casing Seal - Viton (Ref. 10) | $66.00 | 5 in Stock | 1 | ||
| 14 | # 5530-300-90 | Seal Kit- Buna-N (optional) | $66.00 | 5 in Stock | 1 | ||
