AMT Pump model 5537-98 Parts

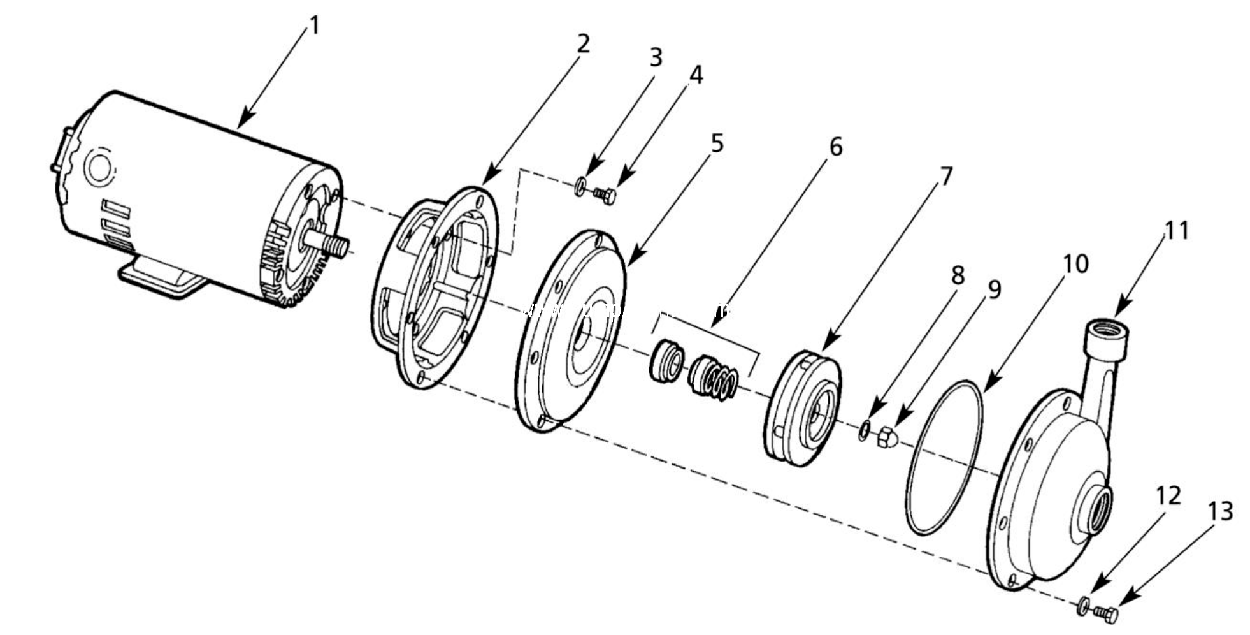

PARTS LIST for AMT Pump model # 5537-98 Pump:
( Click Here for the AMT Pump 5537-98 Product Page )
Item 1
(on image above)
Motor
Motor, 2 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 678.78 / each
Item 2
(on image above)
Adapter
$ 124.74 / each
Item 5
(on image above)
Casting Cover
$ 191.16 / each
Item 6
(on image above)
Seal
Mechanical Seal, Viton, Type 21, size 5/8 Inch
$ 54.00 / each
Item 7
(on image above)
Impeller
Impeller Kit. Includes : Impeller Kit (Ref. 7), Impeller Nut (Ref. 9)
$ 327.24 / each
Item 9
(on image above)
Impeller Nut
$ 14.85 / each
Item 11
(on image above)
Casing
Casing Kit. Includes : Casing Kit (Ref. 11), Washer (Ref. 12), Fastener (Ref. 13)
$ 487.62 / each
Item 14
(on image above)
Seal Kit
Seal Kit - Viton (standard). Includes : Shaft Seal Assembly - Viton (Ref. 6), Impeller Seal - Viton (Ref. 8), Casing Seal - Viton (Ref. 10)
$ 97.20 / each
Item 14
(on image above)
Seal Kit- Buna-N (optional)
$ 97.20 / each
