AMT Pump model 5710-97 Parts
PARTS LIST for AMT Pump model # 5710-97 Pump:

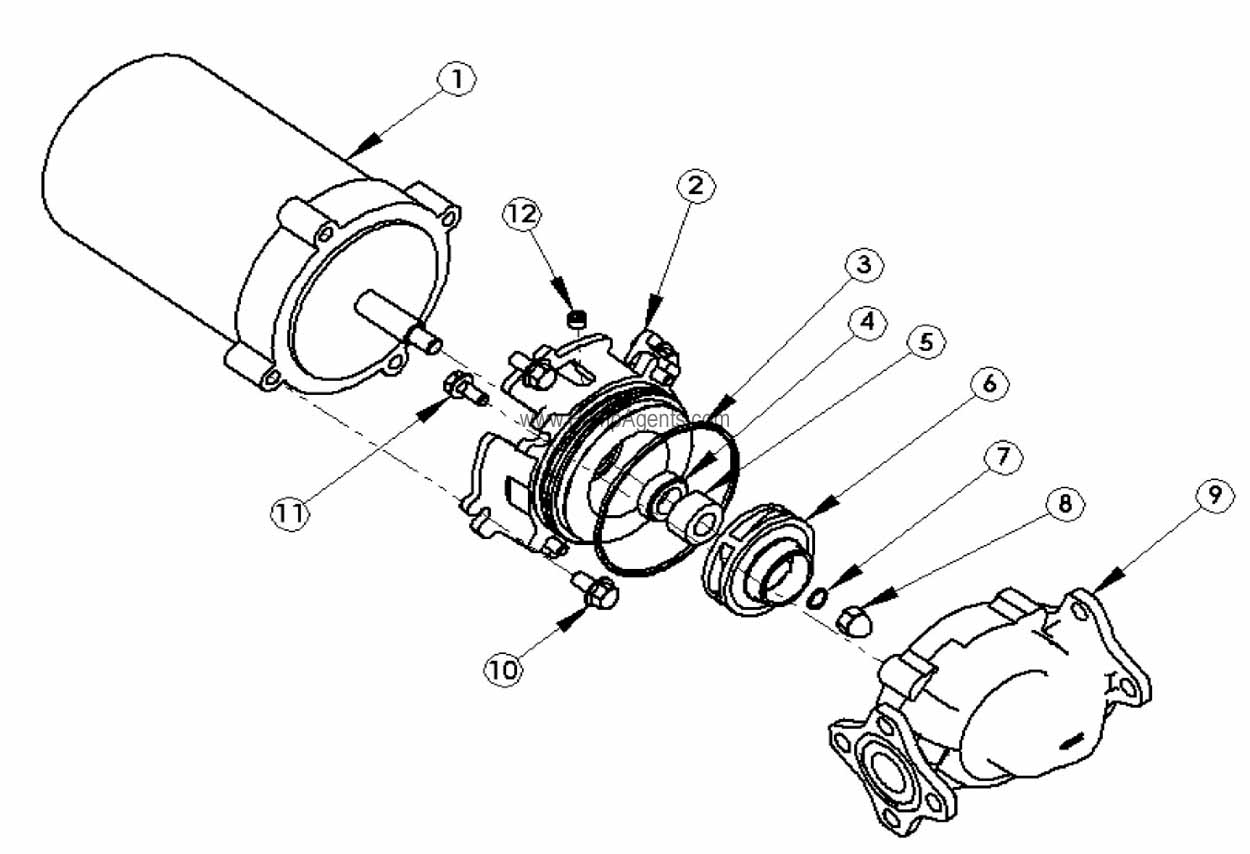

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the AMT Pump 5710-97 Product Page )
Item 1
(on image above)
Motor
Motor, 1/4 Horsepower, 1725 RPM, 115 Volts, 1 Phase, ODP Open Drip Proof, 60 Hz, Nema 56J Frame, replacement electric motor only (pump is not included)
$ 396.90 / each
Item 2
(on image above)
Adapter
$ 165.24 / each
Item 8
(on image above)
7/16-20 Acorn Nut
$ 14.85 / each
Item 9
(on image above)
Casing
Casing
$ 678.78 / each
Item 13
(on image above)
Seal Kit
Seal Kit - EPDM (standard). Includes : O-Ring EPDM (Ref. 3), O-Ring EPDM (Ref. 7), Flange Gasket (Ref. 14)
$ 89.10 / each
Item 13
(on image above)
Seal Kit - Buna (optional
$ 53.46 / each
Item 13
(on image above)
Seal Kit - Viton (optional)
$ 108.54 / each
