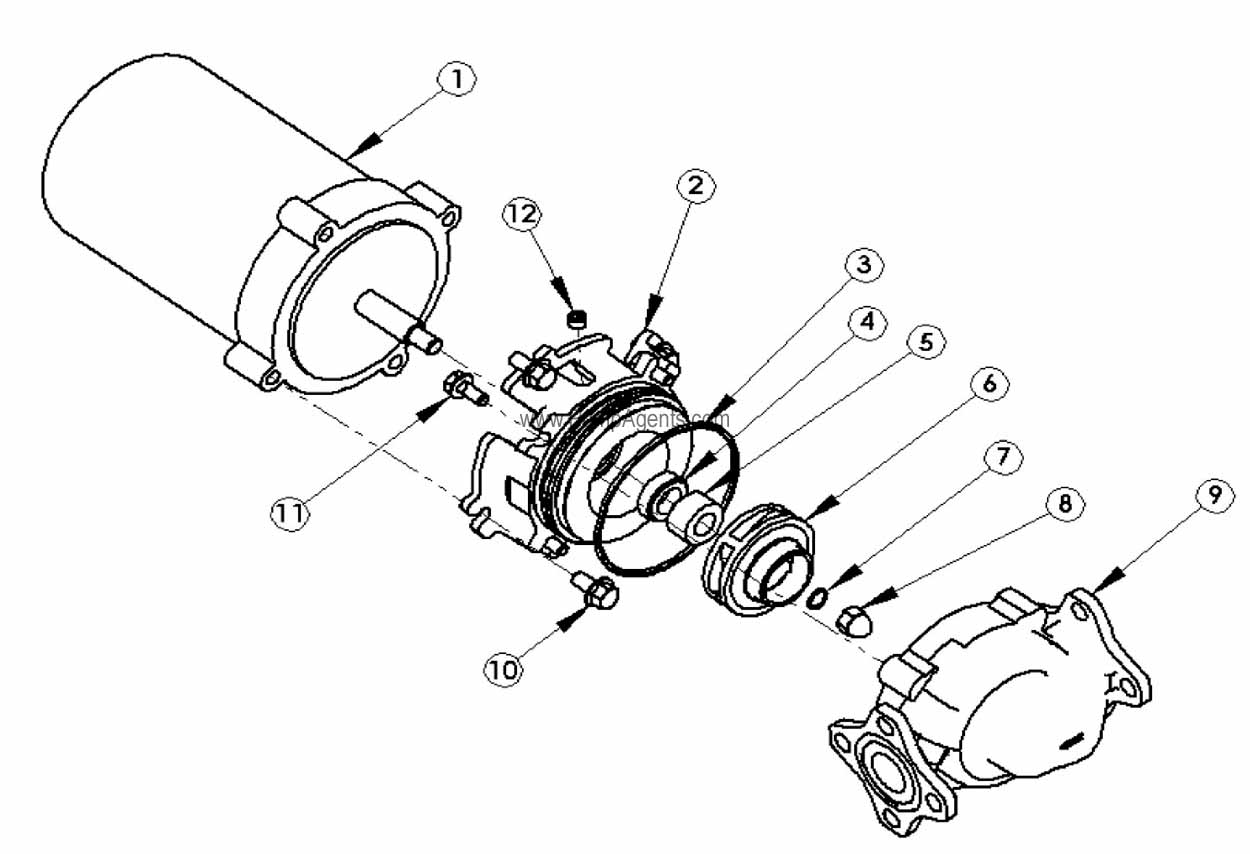

Parts for AMT Pump model # 5720-95

Item 1
(on image above)

Motor

Motor, 1/4 Horsepower, 1725 RPM, 115 Volts, 1 Phase, ODP Open Drip Proof, 60 Hz, Nema 56J Frame, replacement electric motor only (pump is not included)

$ 396.90 / each

Item 2
(on image above)

Part # 5690-031-00

Adapter

$ 165.24 / each

Item 6
(on image above)

Part # 5701-010-00

Impeller

$ 207.36 / each

Item 8
(on image above)

Part # 1784-001-00

7/16-20 Acorn Nut

$ 14.85 / each

Item 9
(on image above)

Part # 5700-001-00

Casing

$ 422.82 / each

Item 13
(on image above)

Part # 5700-301-KT

Seal Kit

Seal Kit - EPDM (standard). Includes : O-Ring EPDM (Ref. 3), O-Ring EPDM (Ref. 7), Flange Gasket (Ref. 14)

$ 89.10 / each

Item 13
(on image above)

Part # 5700-300-KT

Seal Kit - Buna (optional

$ 53.46 / each

Item 13
(on image above)

Part # 5700-302-KT

Seal Kit - Viton (optional)

$ 108.54 / each

AMT Pump model 5720-95 Parts
