AMT Pump model 5745-95 Parts

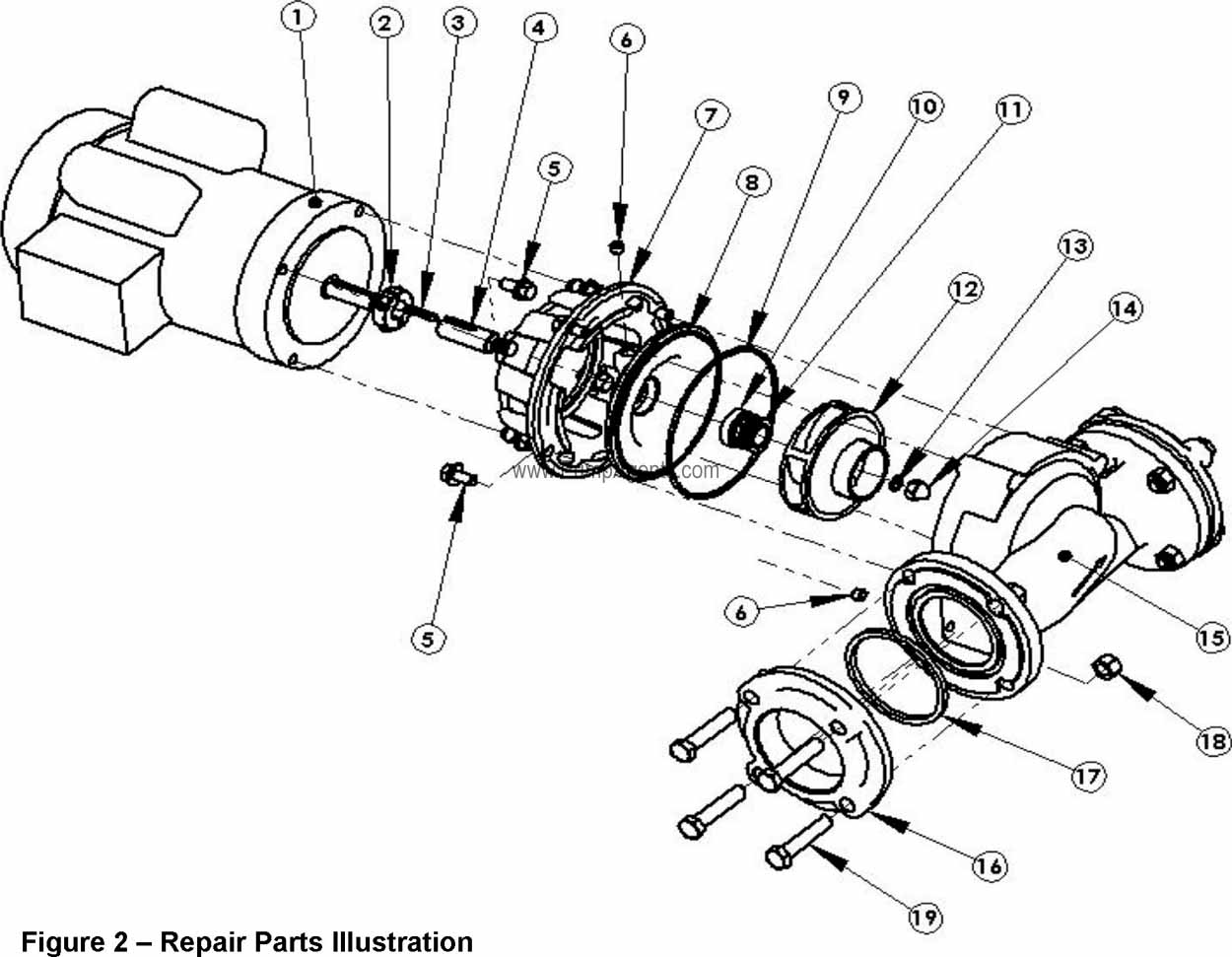

PARTS LIST for AMT Pump model # 5745-95 Pump:
( Click Here for the AMT Pump 5745-95 Product Page )
Item 1
(on image above)
Motor
Motor, 3/4 Horsepower, 1725 RPM, 115/208-230 Volts, 1 Phase, TEFC Totally Enclosed Fan Cooled, Nema 56C Frame, replacement electric motor only (pump is not included)
$ 601.02 / each
Item 2
(on image above)
Shaft Clamp
$ 94.50 / each
Item 3
(on image above)
Drive Key, 3/16 x 5/32 x1.25
$ 9.72 / each
Item 4
(on image above)
Stub Shaft
$ 165.24 / each
Item 7
(on image above)
Adapter Kit. Includes : Flange Screw (Ref. 5)
$ 247.86 / each
Item 8
(on image above)
Seal Plate Kit Cast Iron -95. Includes : 1/8 NPT Plug (Ref. 6)
$ 273.78 / each
Item 1011
(on image above)
Seal
Shaft Seal - EPDM
$ 45.36 / each
Item 12
(on image above)
Impeller
Impeller Kit. Includes : Impeller Nut (Ref. 14)
$ 908.82 / each
Item 13A
(on image above)
Seal Kit
Seal & Gasket Kit - EPDM (standard). Includes : O-Ring #256, EPDM (Ref. 9), O-Ring #013 EPDM (Ref. 13), Flange Gasket Kit EPDM (Ref. 17)
$ 103.68 / each
Item 13A
(on image above)
Seal & Gasket Kit - Buna (optional)
$ 81.00 / each
Item 14
(on image above)
Impeller Nut
$ 14.85 / each
Item 15
(on image above)
Casing
Casing Kit Cast Iron -95. Includes : Flange Screw (Ref. 5), 1/8 NPT Plug (Ref. 6), Casing Kit Cast Iron -95 (Ref. 15)
$ 1273.32 / each
Item 16
(on image above)
Flange Kit Cast Iron -95. Includes : Flange Kit Cast Iron -95 (Ref. 16), Hex Nut (Ref. 18), Hex Bolt , Seal assembly available as set only (Ref. 19)
$ 330.48 / each
