AMT Pump model 5760-95 Parts

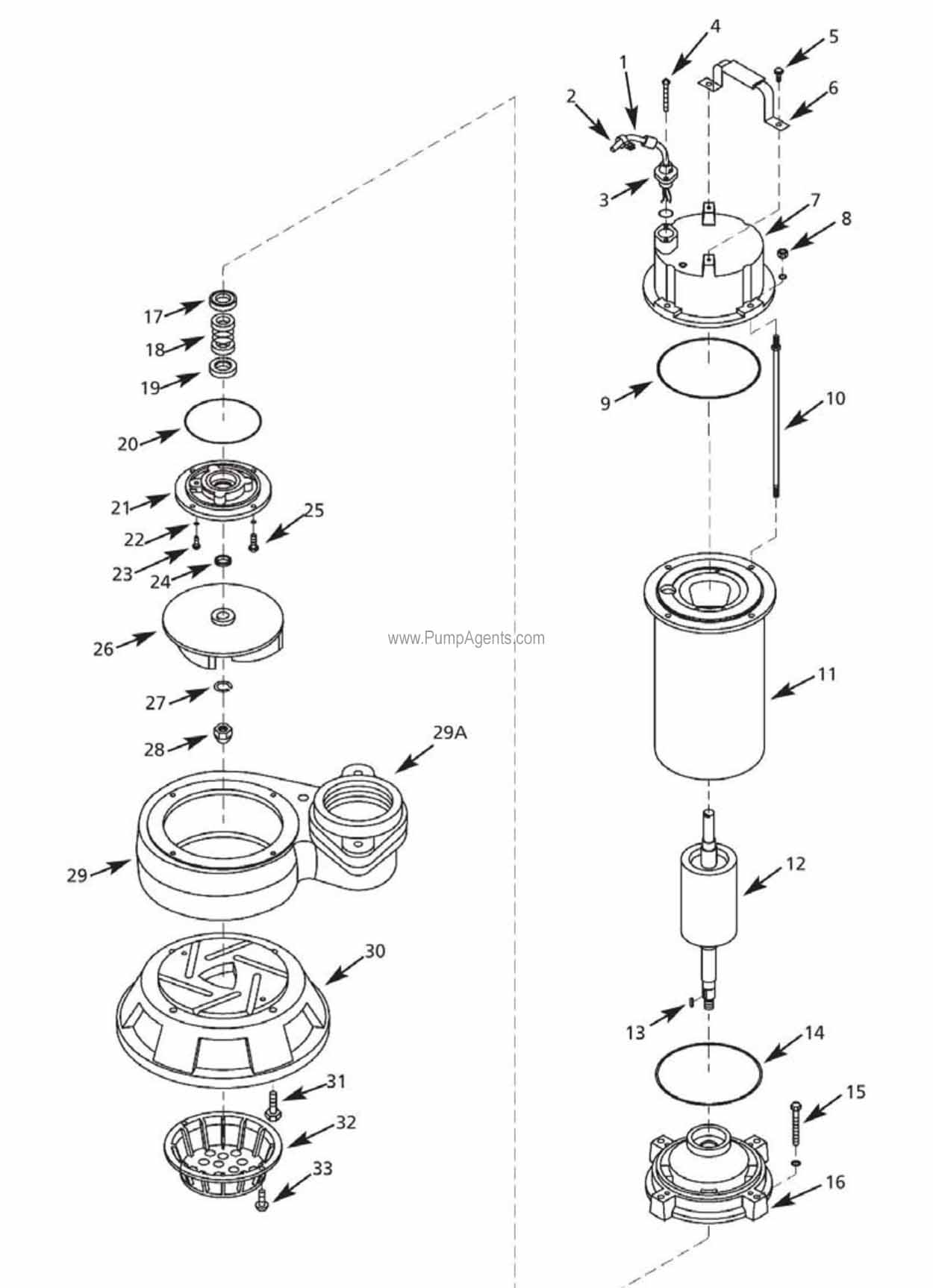

PARTS LIST for AMT Pump model # 5760-95 Pump:
( Click Here for the AMT Pump 5760-95 Product Page )
Item 1
(on image above)
Power Cord Kit -110VAC 1PH. Includes : Power Cord Kit -110VAC, 1PH (Ref. 1), Wire Loom (Ref. 2), Retainer (Ref. 3), Fastener (Ref. 4)
$ 324.00 / each
Item 6
(on image above)
Handle Kit
$ 50.22 / each
Item 29
(on image above)
Casing
Casing Kit
$ 743.58 / each
Item 32
(on image above)
Strainer Kit
$ 27.54 / each
Item 34
(on image above)
Impeller
Wear Plate & Impeller Kit. Includes : Impeller (Ref. 26), Impeller Washer (Ref. 27), Impeller Fastener (Ref. 28), Base (Ref. 30), Fastener (Ref. 31)
$ 473.04 / each
Item 35
(on image above)
Seal Kit
Seal Kit (not shown). Includes : Seal (Ref. 9), Seal (Ref. 14), Upper Seal Seat (Ref. 17), Seal Head (Ref. 18), Lower Seal Seat (Ref. 19), Seal (Ref. 20), Seal (Ref. 22), Slinger Washer (Ref. 24)
$ 570.24 / each
Item 36
(on image above)
Start Capacitor -110VAC, 1PH -220VAC, 1PH
$ 64.80 / each
