AMT Pump model 576C-95 Parts
PARTS LIST for AMT Pump model # 576C-95 Pump:
( Click Here for the AMT Pump 576C-95 Product Page )
Item 1

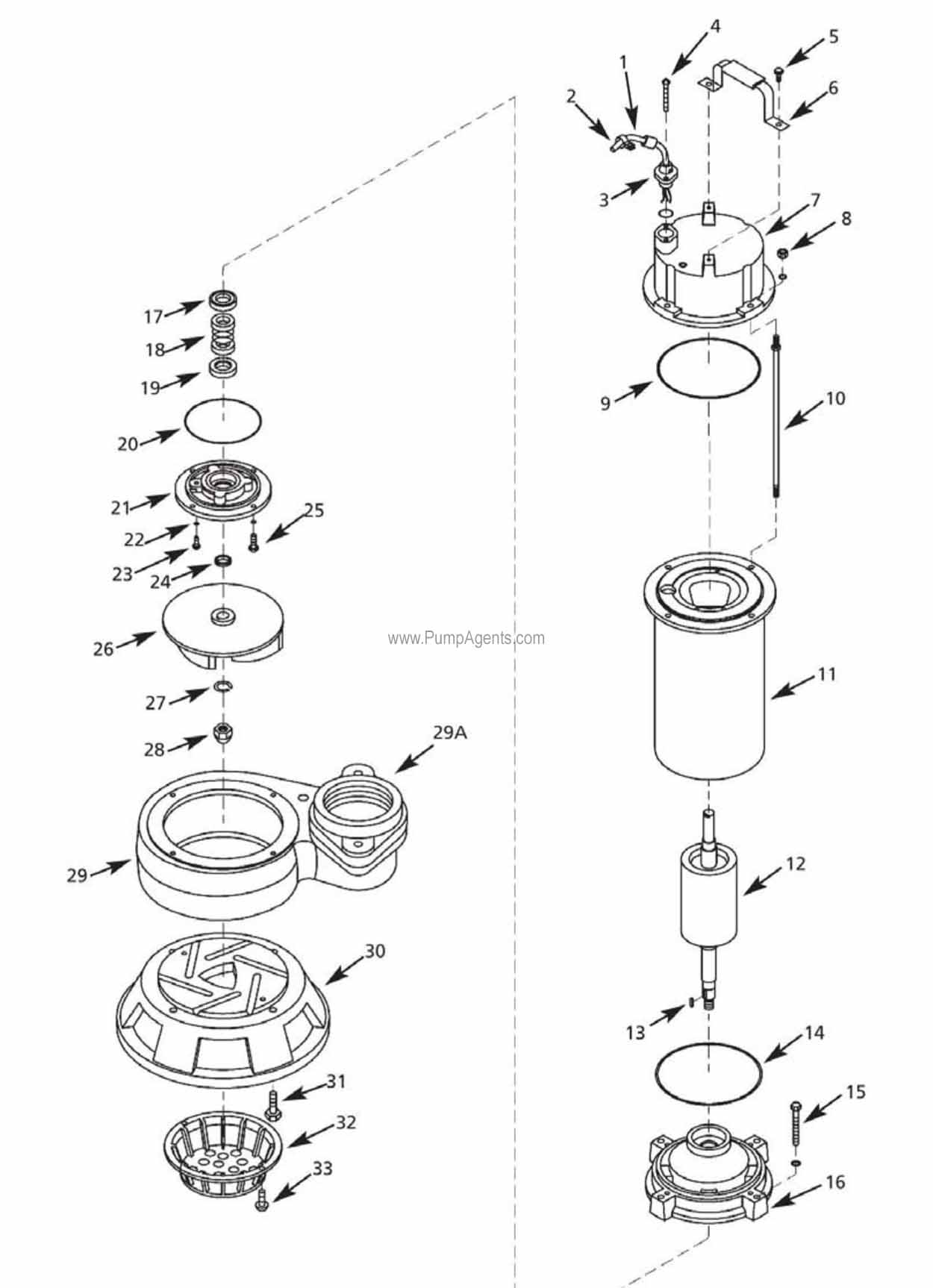

(on image above)
Power Cord Kit -440VAC 3PH. Includes : Power Cord Kit -110VAC, 1PH (Ref. 1), Wire Loom (Ref. 2), Retainer (Ref. 3), Fastener (Ref. 4)
$ 502.20 / each
Item 6
(on image above)
Handle Kit
$ 50.22 / each
Item 29
(on image above)
Casing
Casing Kit
$ 1017.36 / each
Item 32
(on image above)
Strainer Kit
$ 27.54 / each
Item 34
(on image above)
Impeller
Wear Plate & Impeller Kit. Includes : Impeller (Ref. 26), Impeller Washer (Ref. 27), Impeller Fastener (Ref. 28), Base (Ref. 30), Fastener (Ref. 31)
$ 505.44 / each
Item 35
(on image above)
Seal Kit
Seal Kit (not shown). Includes : Seal (Ref. 9), Seal (Ref. 14), Upper Seal Seat (Ref. 17), Seal Head (Ref. 18), Lower Seal Seat (Ref. 19), Seal (Ref. 20), Seal (Ref. 22), Slinger Washer (Ref. 24)
$ 673.92 / each
