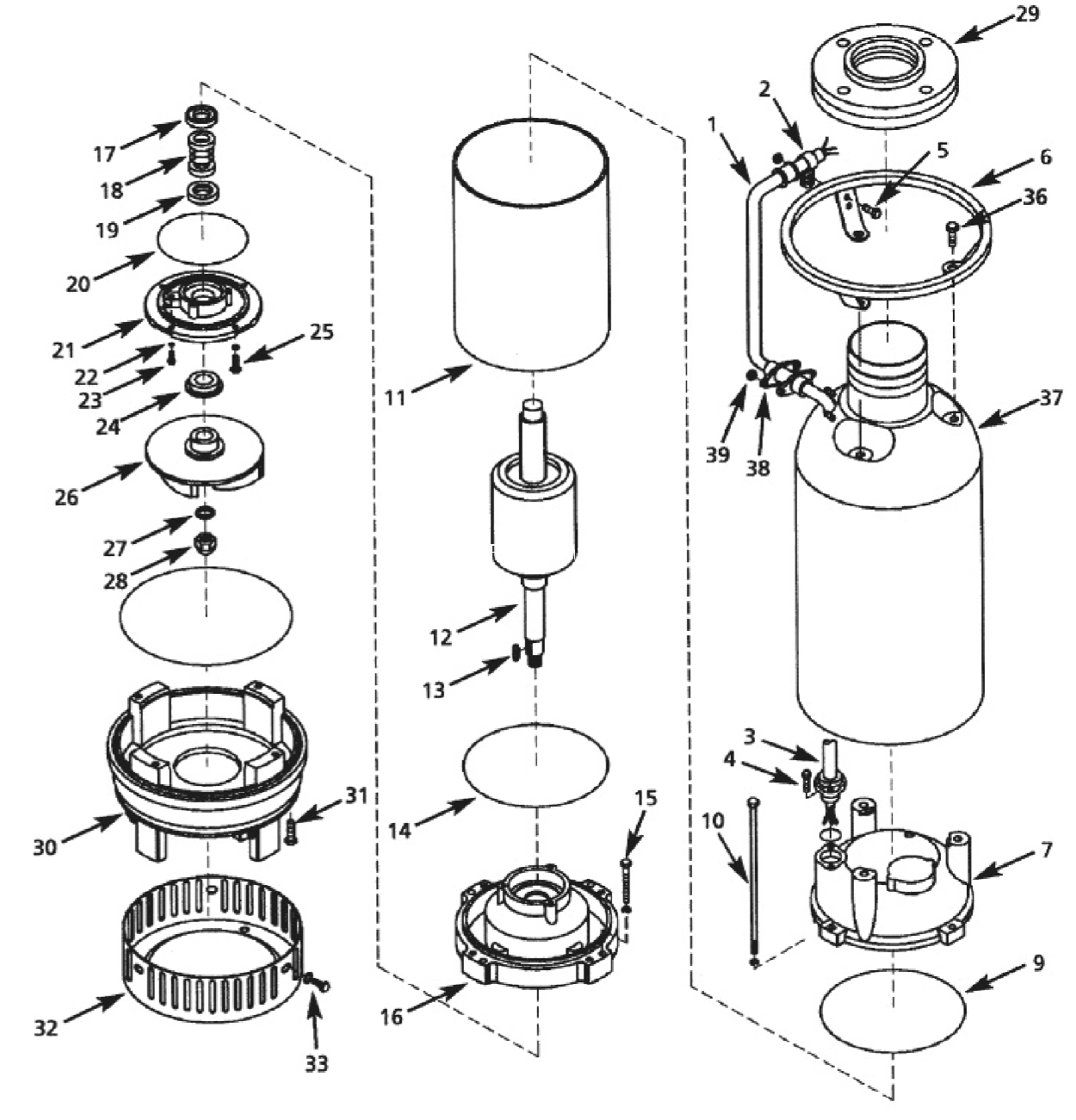

PARTS LIST for AMT Pump model # 5777-95 Pump:
( Click Here for the AMT Pump 5777-95 Product Page )
Item 1
(on image above)
Power Cord Kit - 230VAC Models. Includes : Power Cord Kit - 115VAC Models (Ref. 1), Wire Loom (Ref. 2), Retainer (Ref. 3), Fastener (Ref. 4)
$ 437.40 / each
Item 6
(on image above)
Handle Kit
$ 111.78 / each
Item 29
(on image above)
Flange Kit
$ 178.20 / each
Item 30
(on image above)
Base Kit. Includes : Base Kit (Ref. 30), Fastener (Ref. 31)
$ 372.60 / each
Item 32
(on image above)
Strainer Kit
$ 187.92 / each
Item 34
(on image above)
Impeller
Impeller Kit. Includes : Impeller (Ref. 26), Impeller Washer (Ref. 27), Impeller Fastener (Ref. 28), Impeller Kit (Ref. 34)
$ 704.70 / each
Item 35
(on image above)
Seal
Seal Kit (not shown). Includes : Seal (Ref. 9), Seal (Ref. 14), Upper Seal Seat (Ref. 17), Seal Head (Ref. 18), Lower Seal Seat (Ref. 19), Seal (Ref. 20), Seal (Ref. 22), Slinger Washer (Ref. 24)
$ 729.00 / each
Item 40
(on image above)
Start Capacitor
$ 50.22 / each
