AMT Pump model 598A-95 Parts

PARTS LIST for AMT Pump model # 598A-95 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the AMT Pump 598A-95 Product Page )

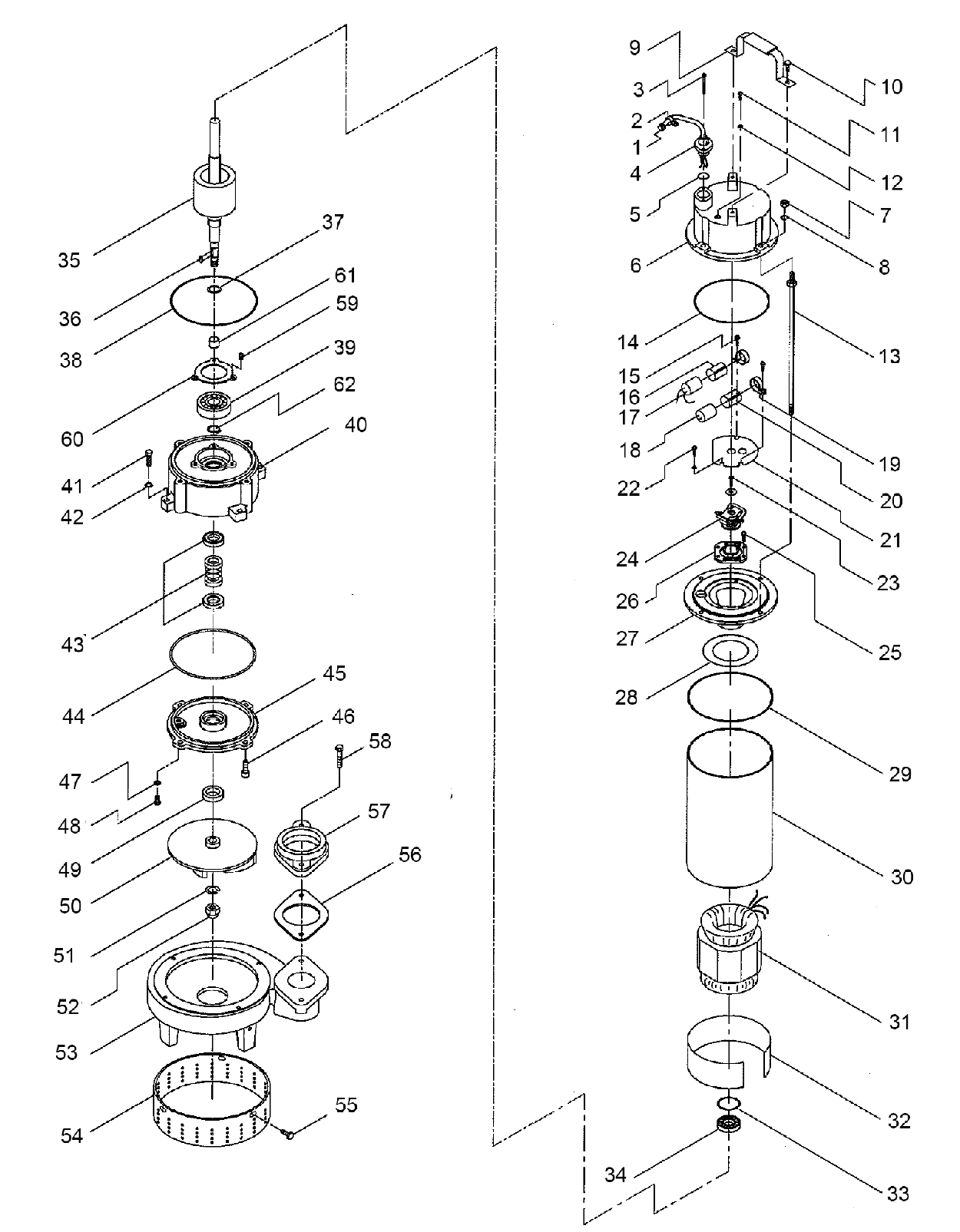

Blowup of 598A-95

Item 1
(on image above)

Part # 598A-350-90

Power Cord Kit. Includes : Power Cord Kit (Ref. 1), Fastener (Ref. 2), O-Ring (Ref. 3), O-Ring/Gasket (Ref. 4)

$ 113.40 / each

Item 6
(on image above)

Part # 598A-100-90

Handle Kit

$ 22.68 / each

Item 29
(on image above)

Part # 598A-001-90

Pump Casing

$ 165.24 / each

Item 33
(on image above)

Part # 598A-020-90

Seal Plate. Includes : Seal Plate (Ref. 33), Fastener (Ref. 34)

$ 29.16 / each

Item 38
(on image above)

Part # 598A-010-90

Impeller

Impeller

$ 51.84 / each

Item 39
(on image above)

Part # 598A-050-90

Suction Cover. Includes : Suction Cover (Ref. 39), Fastener (Ref. 40)

$ 45.36 / each

Item 41
(on image above)

Part # 598A-040-90

Suction Screen. Includes : Suction Screen (Ref. 41)

$ 45.36 / each

Item 50
(on image above)

Part # 598A-300-90

Seal Kit

Seal Kit (not shown). Includes : Seal (Ref. 8), Seal (Ref. 10), O-Ring (Ref. 12), Seal (Ref. 14), O-Ring (Ref. 19), O-Ring (Ref. 26), O-Ring (Ref. 32), Seal (Ref. 35)

$ 97.20 / each
