AMT Pump model 6200-98 Parts( Click Here for the AMT Pump 6200-98 Product Page ) |
|

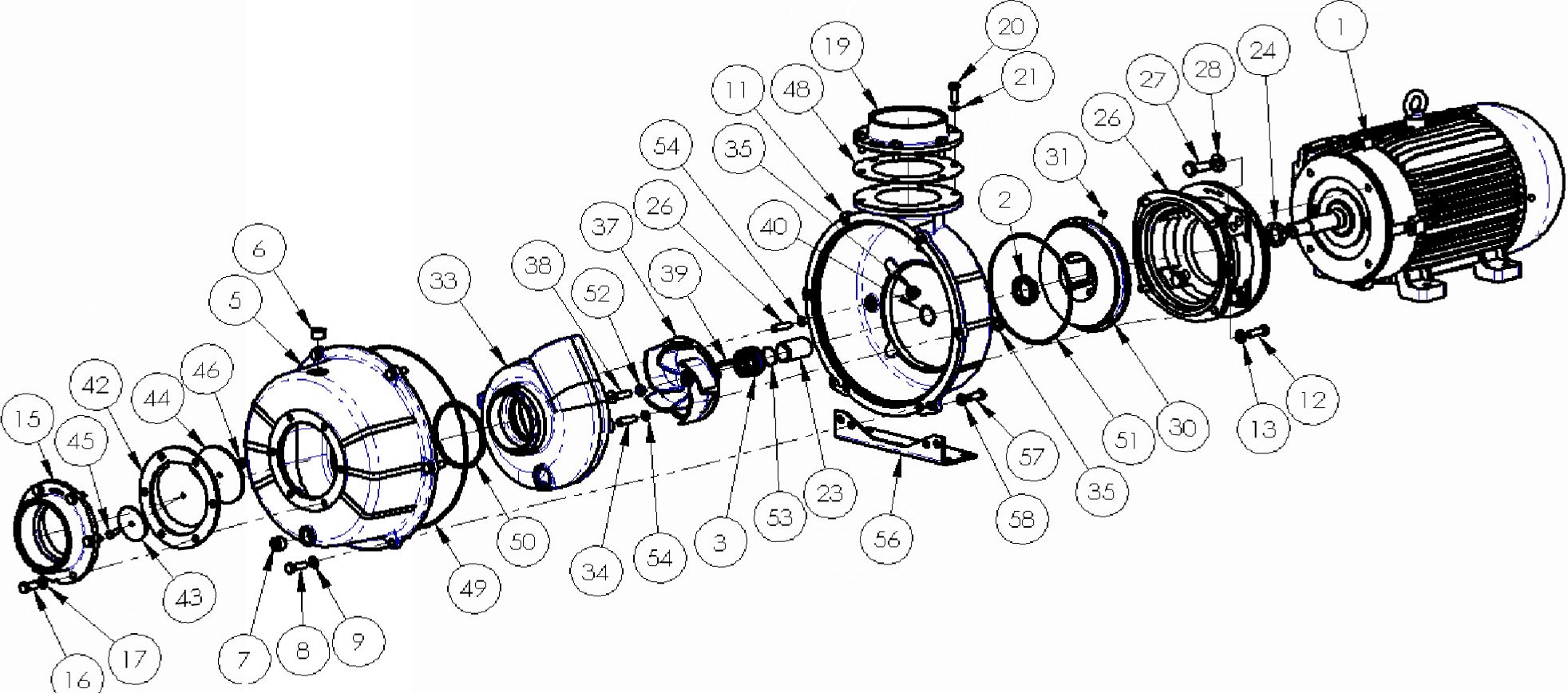

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for AMT Pump model # 6200-98 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 1627-352-00 | Motor, 5 Horsepower, 3450 RPM, Volts, 3 Phase, TEFC Totally Enclosed Fan Cooled, 50/60 Hz Premium Efficient, Nema 184JM Frame, replacement electric motor only (pump is not included) | $1270.50 | 1 in Stock | 1 | ||
| 2+3 | # 1646-324-00 | Mechanical Seal, Viton/Carbon/Carbide, Type 31, size 1-1/2 Inch | $211.20 | 5 in Stock | 1 | ||
| 4 | # 6200-001-98 | Casing Kit, includes Casing, Plugs, Hex Head Screws, and Lock Washers. | $1072.50 | 2 in Stock | 1 | ||
| 10 | # 6200-040-98 | Bracket Kit, includes Bracket, Fasteners, and Washers. | $1037.30 | 2 in Stock | 1 | ||
| 14 | # 6200-050-98 | Suction Flange Kit, includes Suction Flange, Hex Head Screws, and Lock Washers. | $249.70 | 2 in Stock | 1 | ||
| 18 | # 6200-080-98 | Discharge Manifold Kit, includes Discharge Manifold, Hex Head Screws, and Lock Washers. | $243.10 | 2 in Stock | 1 | ||
| 22 | # 6200-140-98 | Shaft Sleeve/Collar Kit, includes Shaft Sleeve, and Shaft Collar. | $37.40 | 2 in Stock | 1 | ||
| 25 | # 6200-030-95 | Adapter Kit, includes Adapter, Hex Screws, and Washers. | $234.30 | 2 in Stock | 1 | ||
| 29 | # 6200-020-98 | Seal Plate Kit, includes Seal Plate, and NPT Plug. | $273.90 | 5 in Stock | 1 | ||
| 32 | # 6200-150-98 | Volute Kit, includes Volute, Studs, and Hex Nuts. | $750.20 | 2 in Stock | 1 | ||
| 36 | # 6200-010-98 | Impeller Kit, includes Impeller, Impeller Screw, Drive Key, and Impeller Shim. | $341.00 | 2 in Stock | 1 | ||
| 41 | # 6200-070-90 | Check Valve Assembly, includes Check Valve, Weights, Hex Head Bolt, and Hex Flange Nut. | $149.60 | 2 in Stock | 1 | ||
| 47 | # 6200-300-90 | Gasket Kit - Viton, includes all Gaskets and O-Rings. | $100.10 | 20 in Stock | 1 | ||
| 55 | # 6200-100-98 | Mounting Foot Kit, includes Mounting Foot, Hex Head Screw, and Washer. | $49.50 | 2 in Stock | 1 | ||
