Berkeley Pump model B58067 Parts

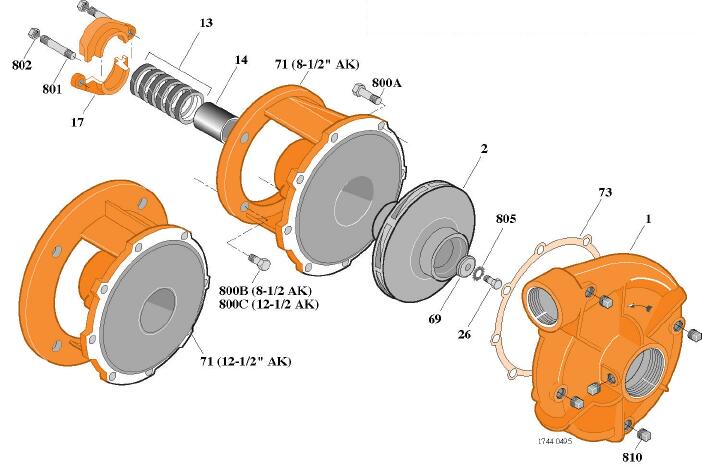

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	SKU	Description	Price	Stock	Required
Parts List for Berkeley Pump model # B58067
1	L05841	Case, Volute	$1401.65	0 in Stock	1

2	M07667	Impeller, 8.62 Diameter, for 25 HP / 3 phase pumps.	$1636.25	0 in Stock	1

13	S13470	Rings, Packing (Set of 6)	$305.15	10 in Stock	1

26	S23619	Screw, Impeller 1/2 - 13 x 1	$17.48	1 in Stock	1

32	S23677	Key, 1/4x2-1/4 (See Note)	$26.35	1 in Stock	1

69	S06319	Washer, Impeller	$125.80	1 in Stock	1

71	L03827	Bracket	$3393.20	0 in Stock	1

73	S05126	Gasket, Volute	$36.55	2 in Stock	1

800A	S26826	Capscrew, 3/8 - 16 x 1 (8 Req.)	$9.93	1 in Stock	8

800B	S26916	Capscrew, 1/2- 13 x 1-1/2 (4 Req.)	$13.86	1 in Stock	4

800C	S26999	Capscrew, 5/8- 11 x 1-1/2 (4 Req.)	$13.99	1 in Stock	4

801	S08303	Stud, 3/8- 16x4 (2 Req.)	$51.00	1 in Stock	2

802	S23343	Nut, Hex 3/8- 16 (2 Req.)	$13.99	1 in Stock	2

805	S23038	Washer, Lock	$7.18	1 in Stock	1
