Berkeley Pump model B73969 Parts

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	SKU	Description	Price	Stock	Required

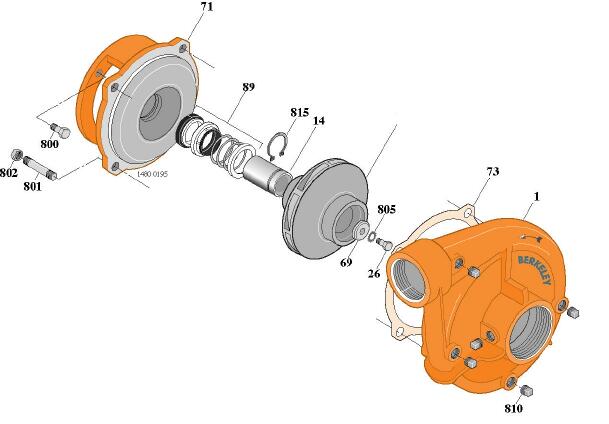

Parts List for Berkeley Pump model # B73969
1	L01023	Case, Volute	$597.55	1 in Stock	1

2	L08088	Impeller, 4.00 Diameter, for 3 HP / 3 phase pumps.	$1886.15	0 in Stock	1

14	S19310L	Sleeve, Shaft	$136.00	1 in Stock	1

32	S34383	Key, 3/16 x 1-1/4 (See Note)	$21.22	1 in Stock	1

69	S06314	Washer, Impeller	$70.55	1 in Stock	1

71	L05329	Bracket	$528.70	1 in Stock	1

73	S04757	Gasket, Volute	$32.30	2 in Stock	1

89	S32014	Seal, Mechanical Shaft	$277.95	2 in Stock	1

800	S26826	Capscrew, 3/8 - 16 x 1 (4 Req.) (For 4- 1/2 AK)	$9.93	1 in Stock	1

800	S26912	Capscrew, 1/2 - 13 x 1 (4 Req.) (For 8- 1/2 AK)	$10.02	1 in Stock	1

801	S24043	Stud, 1/2- 13x1-1/2 (4 Req.)	$21.22	1 in Stock	4

805	S23036	Washer, Lock	$10.02	1 in Stock	1

815	S11207	Ring, Retaining	$41.65	10 in Stock	1

	S23714	Plug, Pipe 1/8 NPT (In Bracket)	$13.86	1 in Stock	1
