Berkeley Pump model B74427 Parts |
|

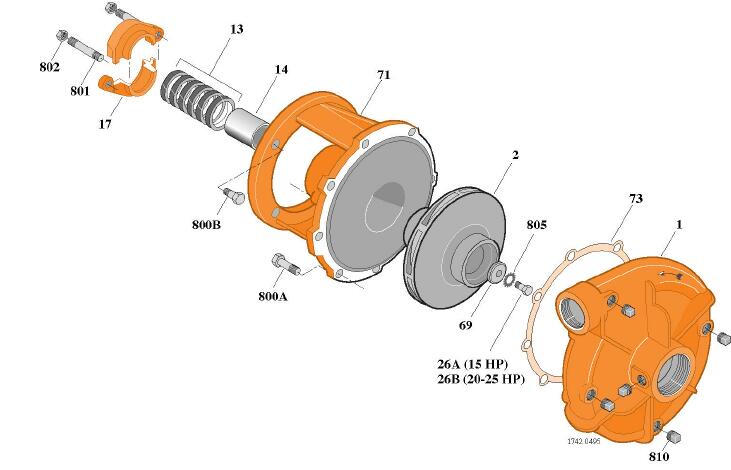

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Berkeley Pump model # B74427 | |||||||
| Key | SKU | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | L03075 | Case, Volute | $2137.75 | 0 in Stock | 1 | ||
| 13 | S13470 | Rings, Packing (Set of 6) | $305.15 | 10 in Stock | 1 | ||
| 26A | S23623 | Screw, Impeller 1/2 - 13 x 1-1/2 | $15.65 | 1 in Stock | 1 | ||
| 26B | S23621 | Screw, Impeller 1/2 - 13 x 1-1/4 | $17.31 | 1 in Stock | 1 | ||
| 32 | S23677 | Key, 1/4x2-1/4 (See Note) | $26.35 | 1 in Stock | 1 | ||
| 69 | S06319 | Washer, Impeller | $125.80 | 1 in Stock | 1 | ||
| 71 | L03827 | Bracket | $3393.20 | 0 in Stock | 1 | ||
| 73 | S05126 | Gasket, Volute | $36.55 | 2 in Stock | 1 | ||
| 800A | S26827 | Capscrew, 3/8 - 16 x 1-1/8 (8 Req.) | $10.02 | 1 in Stock | 8 | ||
| 800B | S26916 | Capscrew, 1/2- 13 x 1-1/2 (4 Req.) | $13.86 | 1 in Stock | 4 | ||
| 801 | S08303 | Stud, 3/8- 16x4 (2 Req.) | $51.00 | 1 in Stock | 2 | ||
| 802 | S23343 | Nut, Hex 3/8- 16 (2 Req.) | $13.99 | 1 in Stock | 2 | ||
| 805 | S23038 | Washer, Lock | $7.18 | 1 in Stock | 1 | ||
