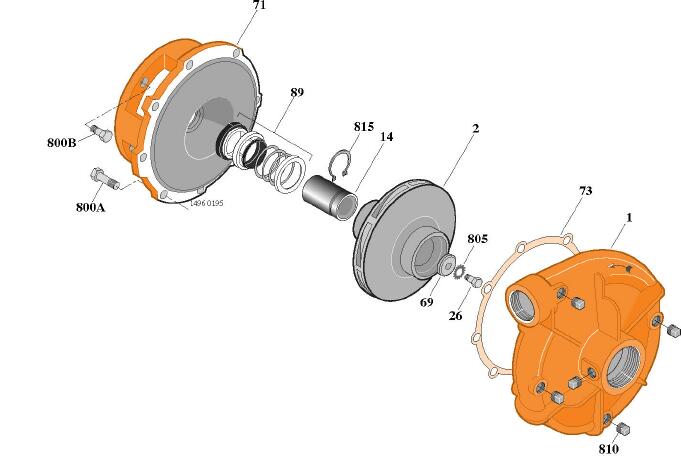

Berkeley Pump model B74435 Parts

Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.

Go To PARTS TABLE below (click here or scroll down)

View Shopping Cart

Proceed to Checkout

Key	SKU	Description	Price	Stock	Required
Parts List for Berkeley Pump model # B74435
1	L03075	Case, Volute	$2137.75	0 in Stock	1

2	H05679	Impeller, 7.94 Diameter, for 15 HP / 3 phase pumps.	$1854.70	0 in Stock	1

14	S19310L	Sleeve, Shaft	$136.00	1 in Stock	1

32	S34383	Key, 3/16 x 1-1/4 (See Note)	$21.22	1 in Stock	1

69	S06314	Washer, Impeller	$70.55	1 in Stock	1

71	L05331	Bracket	$2715.75	0 in Stock	1

73	S05126	Gasket, Volute	$36.55	2 in Stock	1

89	S32014	Seal, Mechanical Shaft	$277.95	2 in Stock	1

800A	S26827	Capscrew, 3/8 - 16 x 1-1/8 (8 Req.)	$10.02	1 in Stock	8

800B	S26912	Capscrew, 1/2 - 13 x 1 (4 Req.)	$10.02	1 in Stock	4

805	S23036	Washer, Lock	$10.02	1 in Stock	1

815	S11207	Ring, Retaining	$41.65	10 in Stock	1

	S23714	Plug, Pipe 1/8 NPT (In Bracket)	$13.86	1 in Stock	1
