Groco Pump model ARGS-1000 Parts

( Click Here for the Groco Pump ARGS-1000 Product Page )
Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.
Go To PARTS TABLE below (click here or scroll down)

Click to Make Image Bigger
View Shopping Cart Shopping Cart Icon Arrow Proceed to Checkout Secure Lock Arrow

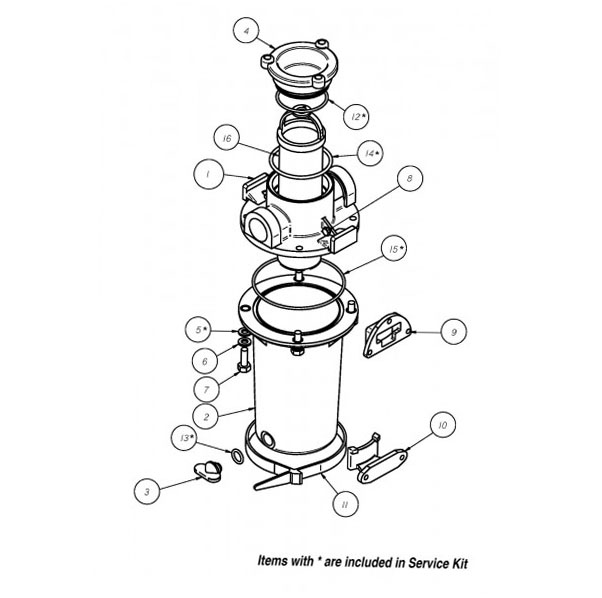

Parts List for Groco Pump model # ARGS-1000
Key Part # Description Price Stock Required Quantity Action
1 # BUSHING-19 1 - 1/4 Inch x 1 Bushing $14.08 0 in Stock 2 are Req'd
2 # ARG-1003 Sight Glass, Clear $87.12 15 in Stock 1 is Req'd
3 # ARG-756 Drain plug with O-ring $6.16 5 in Stock 1 is Req'd
4 # ARG-1001-PC Cap, plastic $35.20 15 in Stock 1 is Req'd
5 # PFW-2 SET Washer Set $4.40 0 in Stock 1 is Req'd
6 # 14SS Washer $0.88 2 in Stock 6 are Req'd
7 # 1420X34HS Bolt $0.88 0 in Stock 6 are Req'd
8 # 1024X14HB Hex Bolt $1.76 0 in Stock 2 are Req'd
9 # ARG-1005 Bracket, Upper $21.12 1 in Stock 1 is Req'd
10 # ARG-1004 Casting, Bracket $16.72 2 in Stock 1 is Req'd
11 # ARG-502 Strap $7.04 2 in Stock 1 is Req'd
12 # 2-232 O-Ring $1.76 15 in Stock 1 is Req'd
13 # 2-011 O-Ring before 080101 $0.88 4 in Stock 1 is Req'd
13 # 2-111 O-Ring $0.88 5 in Stock 1 is Req'd
14 # 2-229 O-Ring $1.76 22 in Stock 1 is Req'd
15 # 2-157 O-Ring $2.64 3 in Stock 1 is Req'd
16 # BM-3 Basket, Monel $178.64 13 in Stock 1 is Req'd
17 # ARG-2 Service Kit $22.88 16 in Stock 1 is Req'd
