Groco Pump model CP-20-S 24V Parts

PARTS LIST for Groco Pump model # CP-20-S 24V Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

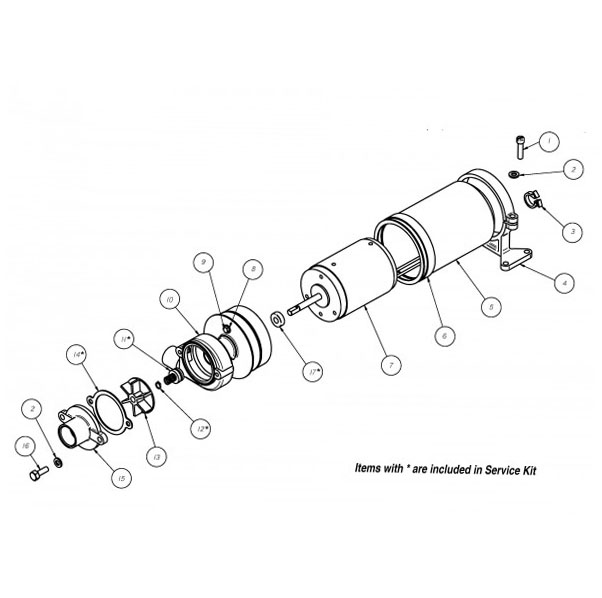

Blowup of CP-20-S_24V

Item 1
(on image above)

Part # 1420X1FB

Screw

$ 1.76 / each

Item 2
(on image above)

Part # 14SB

Lockwasher

$ 0.88 / each

Item 3
(on image above)

Part # CLAMP-14

Wire Clamp

$ 2.64 / each

Item 4
(on image above)

Part # CP-21-S

Casting, Bracket

$ 114.40 / each

Item 5
(on image above)

Motor Cover

$ 147.84 / each

Item 6
(on image above)

Part # CLAMP-6

Clamp

$ 16.72 / each

Item 7
(on image above)

Motor

$ 553.52 / each

Item 8
(on image above)

Part # PFW-K

Washer

$ 0.88 / each

Item 9
(on image above)

Part # 1032X12HST

Screw

$ 1.76 / each

Item 10
(on image above)

Part # CP-20-S

Casting, housing

$ 237.60 / each

Item 11
(on image above)

Seal Assembly

$ 46.64 / each

Item 12
(on image above)

Part # SNAP RING-1

Snap Ring

$ 2.64 / each

Item 13
(on image above)

Impeller and Set Screw

$ 13.20 / each

Item 14
(on image above)

Gasket

$ 3.52 / each

Item 15
(on image above)

Casting, Inlet

$ 59.84 / each

Item 16
(on image above)

Part # 1420X34HS

Bolt

$ 0.88 / each

Item 17
(on image above)

Part # 031-075-8

Seal

$ 4.40 / each

Item 18
(on image above)

Service Kit

$ 88.00 / each
