Groco Pump model K-H 12V Parts

PARTS LIST for Groco Pump model # K-H 12V Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

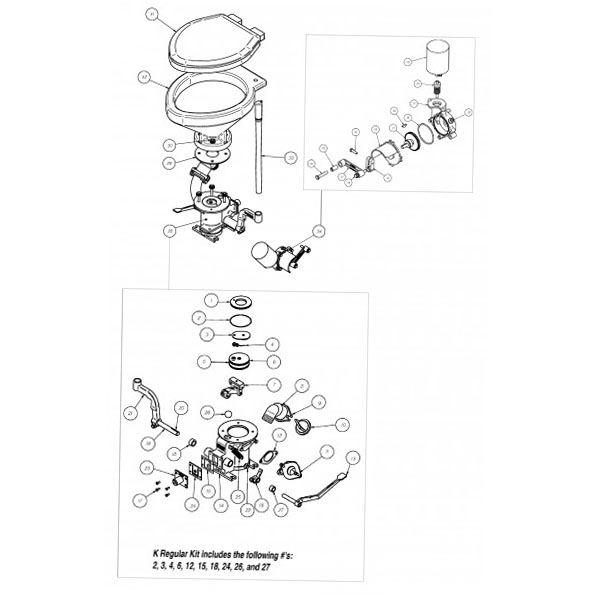

Blowup of K-H_12V

Item 1
(on image above)

Part # K-4-B

Casting, Cover Plate

$ 53.68 / each

Item 2
(on image above)

O-Ring

$ 1.76 / each

Item 3
(on image above)

Part # HT-26-A

Gasket Assembly

$ 15.84 / each

Item 4
(on image above)

Spring Assembly

$ 32.56 / each

Item 4
(on image above)

Cover Plate Assembly

$ 108.24 / each

Item 5
(on image above)

Part # K-3-A

Casting, Piston

$ 94.16 / each

Item 6
(on image above)

Piston Rings Set

$ 10.56 / each

Item 7
(on image above)

Crank Assembly

$ 212.08 / each

Item 8
(on image above)

Discharge, straight

$ 83.60 / each

Item 8
(on image above)

Discharge elbow

$ 27.28 / each

Item 9
(on image above)

Casting, bracket

$ 38.72 / each

Item 10
(on image above)

Joker Valve

$ 8.80 / each

Item 11
(on image above)

Casting, elbow

$ 168.08 / each

Item 12
(on image above)

Gasket

$ 4.40 / each

Item 13
(on image above)

Part # HT-3570-A

Casting, foot pedal

$ 77.44 / each

Item 14
(on image above)

Part # K-B

Casting, Pump Body

$ 1092.96 / each

Item 15
(on image above)

Part # HT-3557-A

Gasket

$ 10.56 / each

Item 16
(on image above)

Part # K-1A

Casting, cam Assembly

$ 54.56 / each

Item 17
(on image above)

Part # 1024X12HB

Screw

$ 1.76 / each

Item 18
(on image above)

Seal

$ 12.32 / each

Item 19
(on image above)

Part # HT-6566-K SHAFT

Shaft

$ 70.40 / each

Item 20
(on image above)

Part # 1/8" SQUARE KEY

Key

$ 3.79 / each

Item 21
(on image above)

Part # HT-3560-D

Casting, Arm

$ 154.88 / each

Item 22
(on image above)

Part # 1827HB

Drain Plug

$ 2.64 / each

Item 23
(on image above)

Casting, Inlet

$ 54.56 / each

Item 24
(on image above)

Gasket Assembly

$ 17.60 / each

Item 25
(on image above)

Spring

$ 43.12 / each

Item 26
(on image above)

Ball

$ 13.20 / each

Item 27
(on image above)

Seal

$ 7.92 / each

Item 28
(on image above)

Part # K PUMP ASSY

Pump Assembly

$ 2244.88 / each

Item 29
(on image above)

Gasket

$ 16.72 / each

Item 30
(on image above)

Part # 20L

Washer

$ 0.88 / each

Item 30
(on image above)

Part # 20LP

Washer

$ 1.76 / each

Item 30
(on image above)

Part # 51618X134HS

Bolts

$ 2.64 / each

Item 31
(on image above)

Part # 500-D-0

Seat and Cover, white

$ 77.44 / each

Item 32
(on image above)

Bowl, white

$ 227.04 / each

Item 33
(on image above)

Part # HT-3560-C

Handle

$ 79.20 / each

Item 34
(on image above)

Part # EB/K CON 12V

Electric Conversion Kit

$ 1356.08 / each

Item 35
(on image above)

Part # 12V-C

Motor and Clutch

$ 655.60 / each

Item 36
(on image above)

Part # RG-3038

Worm Assembly

$ 168.08 / each

Item 37
(on image above)

Part # RG-3041

Casting, gearbox

$ 271.92 / each

Item 38
(on image above)

O-Ring

$ 1.76 / each

Item 40
(on image above)

Part # 5 KEY

Key

$ 8.80 / each

Item 41
(on image above)

Part # RG-3037

Gear Assembly

$ 165.44 / each

Item 42
(on image above)

Part # RG-3042-A

Casting, cover

$ 120.56 / each

Item 43
(on image above)

Part # 1420X1HB

Bolt

$ 0.88 / each

Item 44
(on image above)

Part # RG-3048

Casting, eccentric

$ 44.00 / each

Item 45
(on image above)

Part # AA-520-2

Bearing, oilite

$ 22.00 / each

Item 46
(on image above)

Part # 51618X112HB

Bolt

$ 4.40 / each

Item 47
(on image above)

Part # RG-3049-R

Casting, connecting rod

$ 46.64 / each

Item 49
(on image above)

Part # RG-3049-A

Connecting Rod Assembly

$ 120.56 / each

Item 50
(on image above)

Part # K REGULAR

Service Kit

$ 208.56 / each
