Groco Pump model VD-1250 Parts

( Click Here for the Groco Pump VD-1250 Product Page )
Parts Table is below the image.
Scroll down for Item Listings and Prices.
Products in the table are matched to the number on the image using a Item Key.
Go To PARTS TABLE below (click here or scroll down)

Click to Make Image Bigger
View Shopping Cart Shopping Cart Icon Arrow Proceed to Checkout Secure Lock Arrow

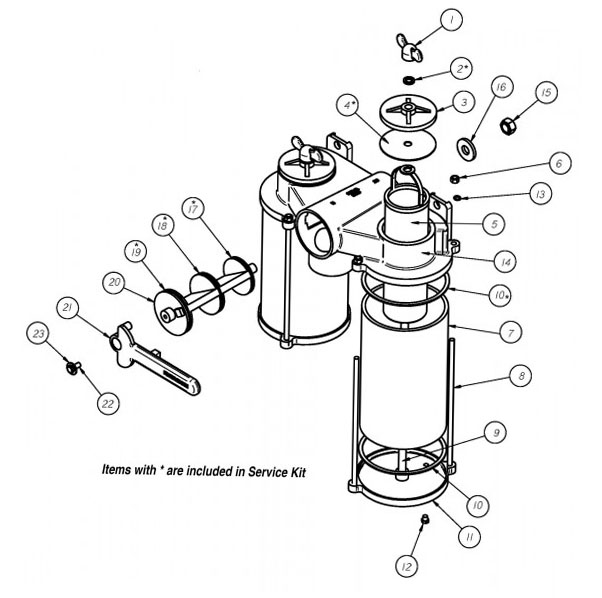

Parts List for Groco Pump model # VD-1250
Key Part # Description Price Stock Required Quantity Action
1 # SVS-5 Wingnut $22.88 4 in Stock 2 are Req'd
2 # 500-K Washer $0.88 4 in Stock 2 are Req'd
3 # S-751 Cover $77.44 1 in Stock 2 are Req'd
4 # S-751-A Gasket $3.52 5 in Stock 2 are Req'd
5 # BM-5 Basket, Monel $219.12 6 in Stock 1 is Req'd
6 # 1420HS Nut $0.88 5 in Stock 4 are Req'd
7 # S-77-A Sight Glass, clear $249.04 0 in Stock 1 is Req'd
8 # S-73-B Tie Rod, outside $14.08 2 in Stock 4 are Req'd
10 # 8R SET Gasket Set $15.84 0 in Stock 2 are Req'd
11 # S-73-A End Cap $137.28 0 in Stock 2 are Req'd
12 # 1827HB Drain Plug $2.64 4 in Stock 2 are Req'd
13 # 14SS Washer $0.88 2 in Stock 4 are Req'd
15 # 1220HB Nut $4.40 0 in Stock 1 is Req'd
16 # VD-A Washer $7.04 0 in Stock 1 is Req'd
17 # 2-218 O-Ring $0.88 0 in Stock 1 is Req'd
19 # 2-222 O-Ring $0.88 0 in Stock 1 is Req'd
