Iwaki Pump model MD-15R-115NL Parts
PARTS LIST for Iwaki Pump model # MD-15R-115NL Pump:

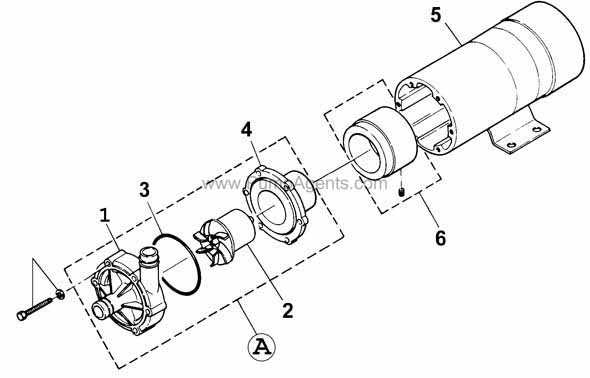

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the Iwaki Pump MD-15R-115NL Product Page )
Item A
(on image above)
Pumphead
$ 92.40 / each
Item 1
(on image above)
Casing
Casing
$ 22.18 / each
Item 2
(on image above)
Impeller
Impeller
$ 38.40 / each
Item 3
(on image above)
O-ring
$ 9.50 / each
Item 4
(on image above)
none
Rear Casing
$ 22.18 / each
Item 5
(on image above)
Motor
Motor, 115V, MD-15R
$ 198.00 / each
Item 6
(on image above)
Drive Magnet
$ 36.43 / each
