Iwaki Pump model MD-70RLZ-115 Parts

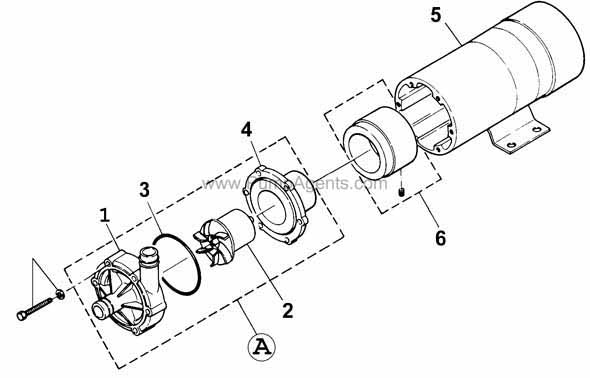

PARTS LIST for Iwaki Pump model # MD-70RLZ-115 Pump:
To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.
( Click Here for the Iwaki Pump MD-70RLZ-115 Product Page )
Item A
(on image above)
Pumphead
$ 367.92 / each
Item 1
(on image above)
Casing
Casing
$ 76.03 / each
Item 2
(on image above)
Impeller
Impeller
$ 216.72 / each
Item 3
(on image above)
O-ring
$ 20.59 / each
Item 4
(on image above)
none
Rear Casing
$ 72.86 / each
Item 5
(on image above)
Motor
Motor, 115V, MD-70RZ
$ 536.98 / each
Item 6
(on image above)
Drive Magnet
$ 129.89 / each
