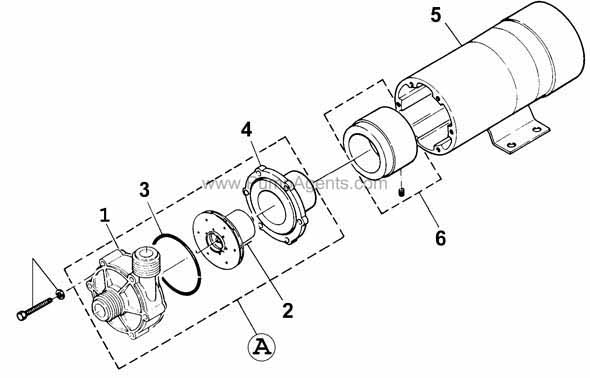

Iwaki Pump model WMD-20RLZT-115 Parts |
|
Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Iwaki Pump model # WMD-20RLZT-115 | |||||||
| Key | SKU | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| A | L-MD-20RZT | Pumphead | $136.08 | 0 in Stock | 1 is Req'd | ||
| 1 | MD0313 | Casing | $26.46 | 4 in Stock | 1 is Req'd | ||
| 2 | MD0036 | Impeller | $74.45 | 0 in Stock | 1 is Req'd | ||
| 3 | MD0003 | O-ring | $14.26 | 0 in Stock | 1 is Req'd | ||
| 4 | MD0039 | Rear Casing | $23.76 | 0 in Stock | 1 is Req'd | ||
| 5 | 54301 | Motor, 115V, WMD-20RLZ | $202.75 | 0 in Stock | 1 is Req'd | ||
| 6 | MD0615 | Drive Magnet | $41.18 | 0 in Stock | 1 is Req'd | ||
