Jabsco Pump model 11810-0001 Parts( Click Here for the Jabsco Pump 11810-0001 Product Page ) |
|

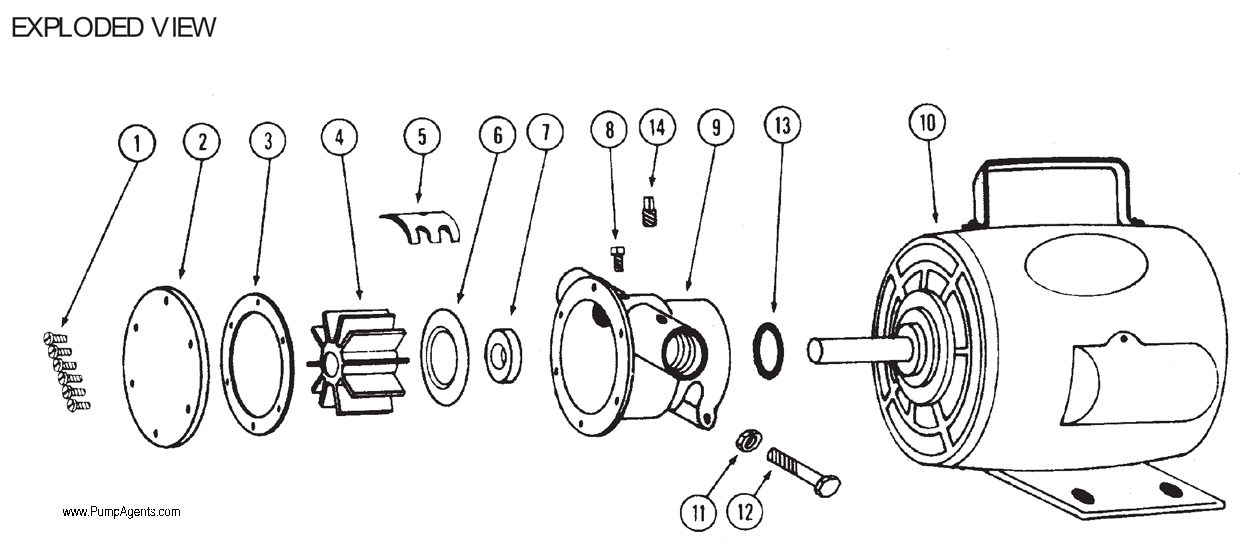

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 11810-0001 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 91002-0020 | Screw (End Cover) | $3.45 | 2 in Stock | 6 | ||
| 2 | # 11830-0000 | End Cover | $19.11 | 35 in Stock | 1 | ||
| 3 | # 3298-0000 | Gasket | $9.56 | 88 in Stock | 1 | ||
| 4 | # 5929-0001-P | Neoprene Impeller | $111.47 | 7 in Stock | 1 | ||
| 5 | # 490-0001 | Cam | $43.53 | 19 in Stock | 1 | ||
| 6 | # 2235-0000 | Wearplate | $14.86 | 2 in Stock | 1 | ||
| 7 | # 92700-0420 | Seal (Shaft) | $30.79 | 25 in Stock | 1 | ||
| 8 | # 91003-0010 | Screw (Cam) | $5.66 | 110 in Stock | 1 | ||
| 10 | # 18739-0000 | Motor, 1/3 HP, 115 Volt AC, 60 Hz, 1725 Rpm, Single Phase, ODP | $831.98 | 2 in Stock | 1 | ||
| 12 | # 91095-0090 | Bolt | $11.35 | 3 in Stock | 1 | ||
| 13 | # 92000-0230 | Slinger (O-Ring) | $12.41 | 0 in Stock | 1 | ||
| 14 | # 92650-0070 | Plug (For Vacuum Switch Hole) | $7.20 | 3 in Stock | 1 | ||
| SK | # 90105-0001 | Service Kit | $115.72 | 2 in Stock | 1 | ||
| PH | # 11818-0001 | Pump Head, complete replacement pump end without motor | $548.71 | 2 in Stock | 1 | ||
| N+S | # 4732-0000 | Vacuum Switch Kit, Automatic shut off for use when pump is left unattended. | $165.61 | 2 in Stock | 1 | ||
