Jabsco Pump model 11810-0011 Parts

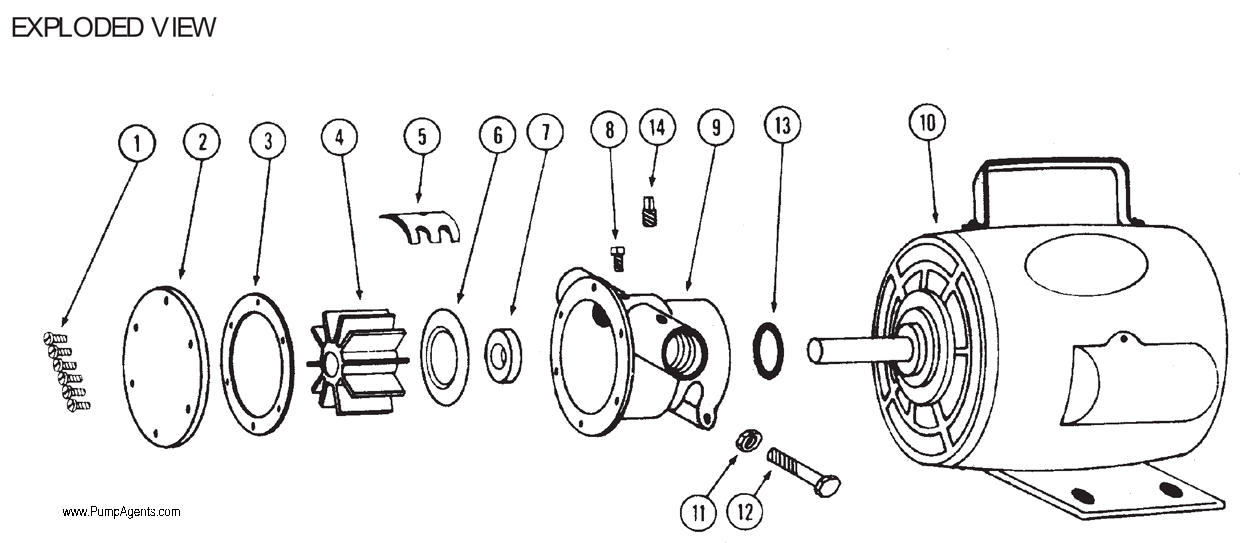

PARTS LIST for Jabsco Pump model # 11810-0011 Pump:
( Click Here for the Jabsco Pump 11810-0011 Product Page )
Item 1
(on image above)
Screw (End Cover)
$ 3.46 / each
Item 2
(on image above)
End Cover
$ 17.67 / each
Item 3
(on image above)
Gasket
$ 8.83 / each
Item 4
(on image above)
Neoprene Impeller
$ 103.04 / each
Item 5
(on image above)
Cam
$ 40.23 / each
Item 6
(on image above)
Wearplate
$ 13.73 / each
Item 7
(on image above)
Seal
Seal (Shaft)
$ 28.46 / each
Item 8
(on image above)
Screw (Cam)
$ 15.71 / each
Item 9
(on image above)
Body
Contact Us for Pricing
Item 10
(on image above)
Motor, TEFC, 1/3 Hp, 115 Volts, 60 Hz, 1725 Rpm, Single Phase
$ 1246.97 / each
Item 11
(on image above)
Nut
Contact Us for Pricing
Item 12
(on image above)
Bolt
$ 11.54 / each
Item 13
(on image above)
Slinger (O-Ring)
$ 10.21 / each
Item 14
(on image above)
Plug (For Vacuum Switch Hole)
$ 7.32 / each
Item SK
(on image above)
Service Kit
$ 106.96 / each
Item PH
(on image above)
Pump Head, complete replacement pump end without motor
$ 507.21 / each
Item NS
(on image above)
Vacuum Switch Kit, Automatic shut off for use when pump is left unattended.
$ 153.08 / each
