Jabsco Pump model 11870-0046 Parts

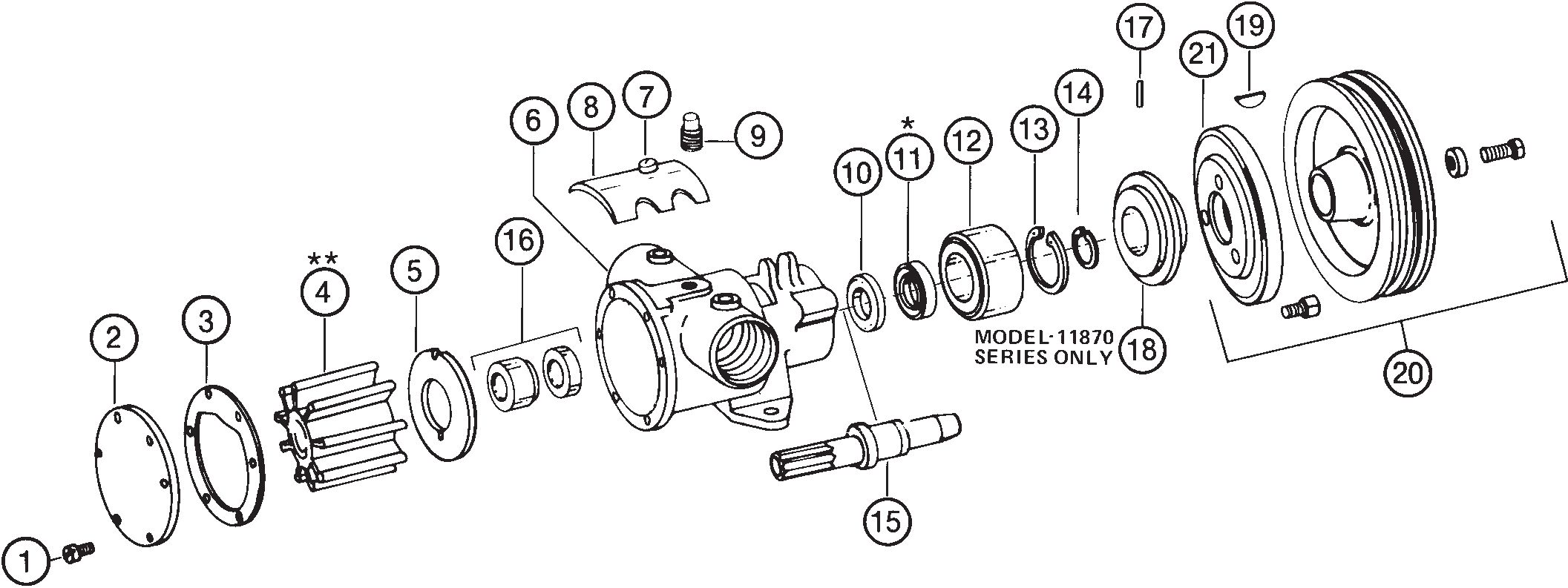

PARTS LIST for Jabsco Pump model # 11870-0046 Pump:
( Click Here for the Jabsco Pump 11870-0046 Product Page )
Item 1
(on image above)
Screw End Cover (3 Per Kit)
$ 8.64 / each
Item 2
(on image above)
End Cover
$ 97.14 / each
Item 3
(on image above)
Gasket
$ 9.72 / each
Item 4
(on image above)
Impeller, Nitrile
$ 66.91 / each
Item 5
(on image above)
Wearplate
$ 28.07 / each
Item 6
(on image above)
Body
Contact Us for Pricing
Item 7
(on image above)
Cam Screw (3 Per Kit)
$ 8.64 / each
Item 8
(on image above)
Cam, Brass
$ 60.45 / each
Item 9
(on image above)
Pipe Plug
$ 7.32 / each
Item 10
(on image above)
Slinger
$ 5.03 / each
Item 11
(on image above)
Seal (Bearing)
$ 30.23 / each
Item 12
(on image above)
Ball Bearing (Pump)
$ 173.78 / each
Item 13
(on image above)
Retaining Ring (Bearing To Body)
$ 20.50 / each
Item 14
(on image above)
Retaining Ring (Bearing To Shaft)
$ 23.74 / each
Item 15
(on image above)
Shaft
$ 300.07 / each
Item 16
(on image above)
Seal
Seal (Shaft)
$ 74.49 / each
Item 17
(on image above)
Roll Pin (Adaptor)
$ 12.95 / each
Item 18
(on image above)
Adaptor
$ 174.86 / each
Item 19
(on image above)
Key (Clutch Drive)
$ 20.50 / each
Item 20
(on image above)
Clutch Assembly, Complete, 24 Volt DC - 1-B Grooves
$ 423.12 / each
Item 21
(on image above)
Replacement Field Coil, 24 Volt Dc
$ 240.02 / each
Item SK
(on image above)
Seal Kit
Service Kit, with Nitrile Impeller, Seal and Gasket
$ 183.50 / each
Item NS
(on image above)
Vacuum Switch (Protects Against Dry Running)
$ 168.40 / each
