Jabsco Pump model 12290-0001 Parts( Click Here for the Jabsco Pump 12290-0001 Product Page ) |
|

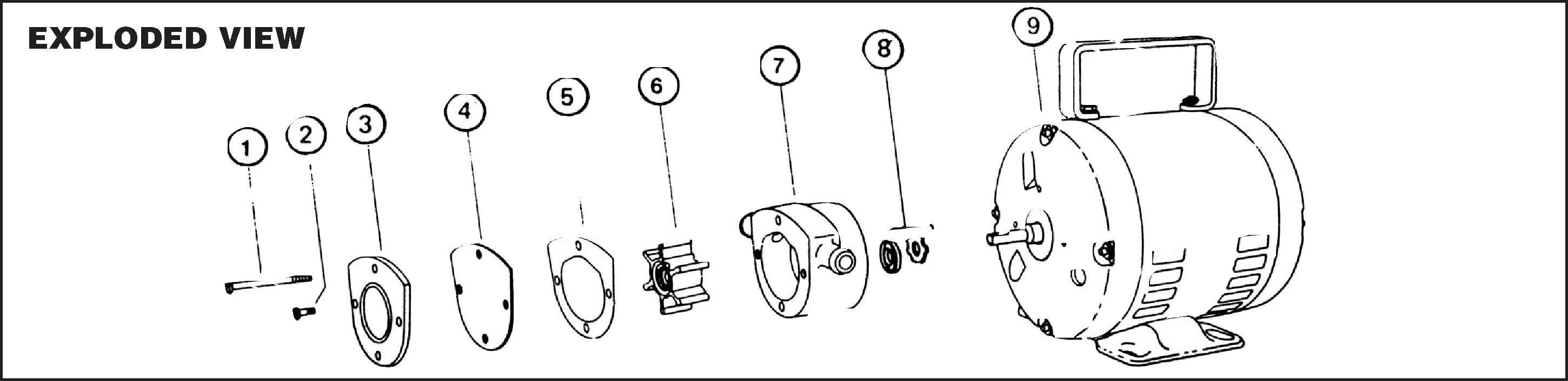

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 12290-0001 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 91014-0010 | Screw (Body to Motor) | $9.88 | 11 in Stock | 2 | ||
| 2 | # 91014-0020 | Screw (end Cover) | $3.36 | 5 in Stock | 2 | ||
| 3 | # 12555-0000 | End Cover | $46.23 | 4 in Stock | 1 | ||
| 4 | # 12557-0000 | Wearplate | $41.39 | 9 in Stock | 1 | ||
| 5 | # 12558-0000 | Gasket | $4.00 | 301 in Stock | 1 | ||
| 6 | # 7273-0001-P | Impeller, Neoprene | $39.29 | 18 in Stock | 1 | ||
| 7 | # 12554-0000 | Body | $120.12 | 2 in Stock | 1 | ||
| 8 | # 1040-0000 | Seal, Standard | $12.73 | 38 in Stock | 1 | ||
| 8 | # 1040-0001 | Seal, Viton | $26.54 | 2 in Stock | 1 | ||
| 9 | # 18740-0000 | Motor, 1/6hp - 115 Volts Ac, 60 Hz, Odp, 8 Foot Cord with 3 Prong Grounded Plug | $756.82 | 2 in Stock | 1 | ||
| PH | # 12590-0011 | Replacement Pump Head w/ Neoprene Impeller | $162.70 | 8 in Stock | 1 | ||
| SK | # 90126-0002 | Service Kit w/ Neoprene Impeller, Gasket and seal | $52.03 | 2 in Stock | 1 | ||
