Jabsco Pump model 12310 Parts

PARTS LIST for Jabsco Pump model # 12310 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 12310 Product Page )

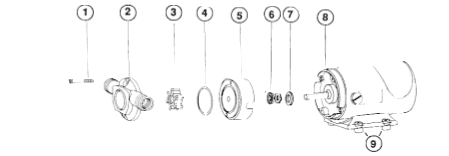

Blowup of 12310

Item 1
(on image above)

Part # 91023-0050

Screw (End Cover)

$ 1.38 / each

Item 2
(on image above)

Part # 12375-0000

Body

Contact Us for Pricing

Item 3
(on image above)

Part # 14792-0001

*Impeller (Neoprene)

$ 37.78 / each

Not Shown
(Not Shown on image above)

Part # 14792-0003

*Impeller (Nitrile)

$ 51.70 / each

Item 4
(on image above)

Part # 92000-0750

*O-Ring

$ 15.11 / each

Item 5
(on image above)

Part # 12314-0000

Seal Housing

$ 991.16 / each

Item 6
(on image above)

Part # 1040-0000

*Seal Assembly - Buna

$ 12.95 / each

Item 7
(on image above)

Part # 6342-0000

Slinger

$ 1.80 / each

Item 8
(on image above)

Part # 9195-0004

Motor, 115 Volt AC

$ 312.88 / each

Item 9
(on image above)

Part # 92900-0120

Grommet

$ 8.83 / each

Not Shown
(Not Shown on image above)

Part # 12377-0001

Replacement Pump Head

$ 221.58 / each

Not Shown
(Not Shown on image above)

Part # 90158-0011

Service Kit - w/ Neoprene Impeller

$ 98.23 / each

Not Shown
(Not Shown on image above)

Part # 90158-0033

Service Kit - w/ Nitrile Impeller

$ 64.78 / each
