Jabsco Pump model 12490-0001 Parts

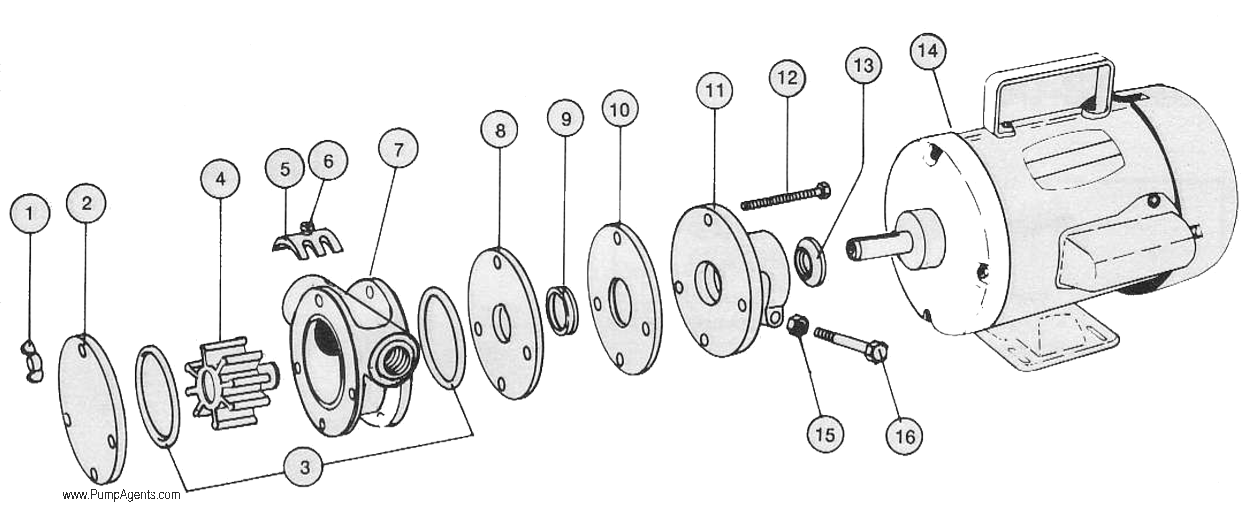

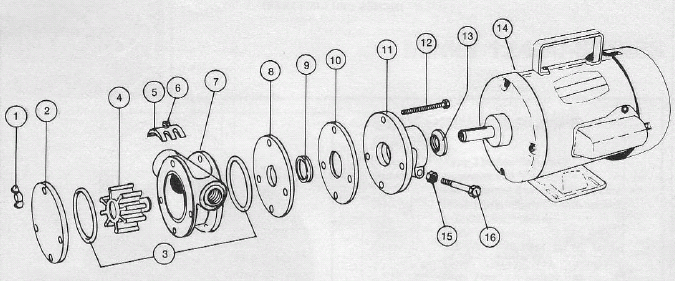

PARTS LIST for Jabsco Pump model # 12490-0001 Pump:
( Click Here for the Jabsco Pump 12490-0001 Product Page )
Item 1
(on image above)
Wing Nut
$ 5.59 / each
Item 2
(on image above)
End Cover
$ 73.40 / each
Item 3
(on image above)
O-Ring
$ 12.95 / each
Item 4
(on image above)
Impeller, Neoprene
$ 211.56 / each
Item 5
(on image above)
Cam
$ 282.05 / each
Item 6
(on image above)
Cam Screw
$ 14.77 / each
Item 7
(on image above)
Body
$ 2320.27 / each
Item 8
(on image above)
Wearplate
$ 41.36 / each
Item 9
(on image above)
Seal
$ 107.82 / each
Item 10
(on image above)
Liner
$ 112.26 / each
Item 11
(on image above)
Adaptor
$ 242.07 / each
Item 12
(on image above)
Bolt (Body)
$ 5.26 / each
Item 13
(on image above)
Slinger
$ 10.79 / each
Item 14
(on image above)
Motor, 3/4 HP, 1725 RPM, 60 Hz, Single Phase, 115/230 Volts, TEFC
$ 1008.12 / each
Item 15
(on image above)
Nut (Adaptor)
$ 2.66 / each
Item 16
(on image above)
Bolt (Adaptor)
$ 11.54 / each
Item PH
(on image above)
Replacement Pump Head, with Neoprene Impeller
$ 1664.54 / each
Item SK
(on image above)
Major Overhaul Kit
Service Kit, with Neoprene Impeller, Seal and O-Ring
$ 319.95 / each
