Jabsco Pump model 12510-0001 Parts

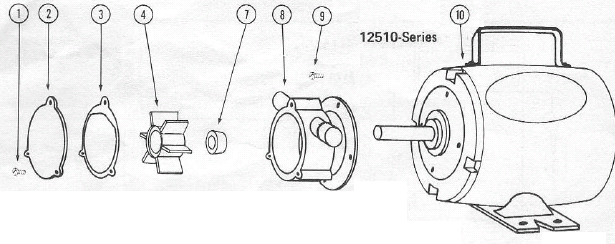

PARTS LIST for Jabsco Pump model # 12510-0001 Pump:
( Click Here for the Jabsco Pump 12510-0001 Product Page )
Item 1
(on image above)
Screw Kit (End Cover), with 3 Screws
$ 10.77 / each
Item 2
(on image above)
End Cover
$ 43.68 / each
Item 3
(on image above)
Gasket
$ 37.58 / each
Item 4
(on image above)
Impeller
Impeller, Neoprene
$ 55.05 / each
Item 7
(on image above)
Seal, Buna N
Contact Us for Pricing
Item 8
(on image above)
Body
Contact Us for Pricing
Item 9
(on image above)
Screw (Pump to Motor)
$ 3.48 / each
Item 10
(on image above)
Motor, 1/6hp - 115 Volts Ac, 60 Hz, Odp, 8 Foot Cord with 3 Prong Grounded Plug
$ 685.21 / each
Item 12
(on image above)
Rubber Bumper
Contact Us for Pricing
Item SK
(on image above)
Major Overhaul Kit
Service Kit, Neoprene, with Neoprene Impeller, Seal and Gasket
$ 51.01 / each
Item PH
(on image above)
Replacement Pump Head Less Motor, Neoprene
$ 464.62 / each
