PARTS LIST for Jabsco Pump model # Pump:
( Click Here for the Jabsco Pump 12510-0271 Product Page )

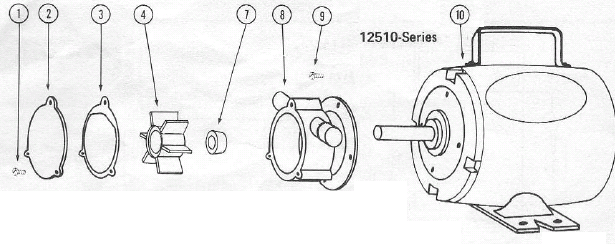

Item 1
(on image above)
Screw End Cover (set of 3)
$ 10.77 / each
Item 2
(on image above)
End Cover
$ 43.68 / each
Item 3
(on image above)
*Gasket/O-Ring
$ 37.58 / each
Item 4
(on image above)
Impeller
*Impeller
$ 55.05 / each
Item 7
(on image above)
Seal
*Seal
$ 11.77 / each
Item 8
(on image above)
Body
Contact Us for Pricing
Item 9
(on image above)
Screw (Pump to Motor)
$ 3.48 / each
Item 10
(on image above)
Motor
Motor, 1/4 hp, 115 Vac, 60 Hz, TENV, 1725 RPM, 8 foot Cord with 3 Prong Plug
$ 404.16 / each
Item 12
(on image above)
Rubber Bumper
Contact Us for Pricing
Item SK
(on image above)
Kit
Service Kit c/w Impeller, Seal, and Gasket/Oring
$ 51.01 / each
Item PH
(on image above)
Replacement Pump Head (less Motor)
$ 464.62 / each
