Jabsco Pump model Parts( Click Here for the Jabsco Pump Product Page ) |
|

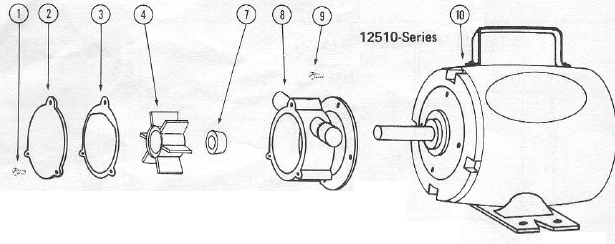

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0105 | Screw End Cover (set of 3) | $10.59 | 0 in Stock | 1 | ||
| 2 | # 11833-0000 | End Cover | $42.96 | 6 in Stock | 1 | ||
| 3 | # 9156-0000 | *Gasket/O-Ring | $36.96 | 0 in Stock | 1 | ||
| 4 | # 9200-0003 | *Impeller | $56.26 | 31 in Stock | 1 | ||
| 7 | # 1040-0000 | *Seal | $12.73 | 38 in Stock | 1 | ||
| 9 | # 98019-0020 | Screw (Pump to Motor) | $3.43 | 9 in Stock | 3 | ||
| 10 | # 18742-0000 | Motor, 1/4 hp, 115 Vac, 60 Hz, TENV, 1725 RPM, 8 foot Cord with 3 Prong Plug | $437.24 | 2 in Stock | 1 | ||
| **SK | # 90106-0013 | Service Kit c/w Impeller, Seal, and Gasket/Oring | $67.63 | 4 in Stock | 1 | ||
| **P+H | # 9130-0003 | Replacement Pump Head (less Motor) | $456.94 | 0 in Stock | 1 | ||
