Jabsco Pump model 12520-1273 Parts( Click Here for the Jabsco Pump 12520-1273 Product Page ) |
|

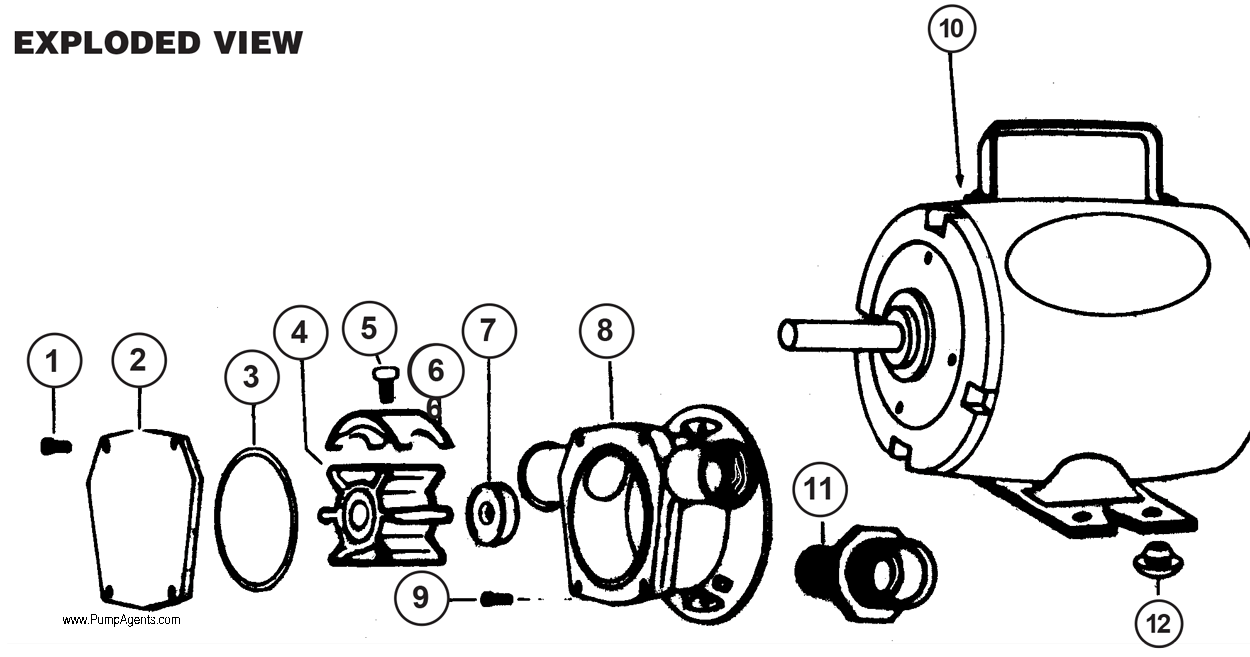

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # 12520-1273 | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 18753-0102 | Screw Kit (End Cover). Includes, Impeller, Neoprene Nitrile (Ref. 4) | $12.16 | 2 in Stock | 1 | ||
| 2 | # 6791-1100 | End Cover | $61.05 | 1 in Stock | 1 | ||
| 3 | # 18753-0104 | Gasket/O-Ring | $4.26 | 8 in Stock | 1 | ||
| 4 | # 7273-0003-P | Impeller, Nitrile | $39.29 | 62 in Stock | 1 | ||
| 7 | # 98019-0020 | Screw (Pump to Motor) | $3.43 | 9 in Stock | 1 | ||
| 8 | # 18742-0000 | Motor, 1/4 hp, 115 Vac, 60 Hz, TENV, 1725 RPM, 8 foot Cord with 3 Prong Plug | $437.24 | 2 in Stock | 1 | ||
