Jabsco Pump model Parts

PARTS LIST for Jabsco Pump model # Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 15010-0665 Product Page )

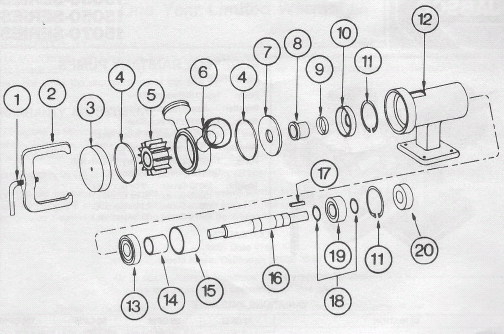

Blowup of 15010-0665

Item 1
(on image above)

Part # 10408-0010

Clamp Screw

$ 134.29 / each

Item 2
(on image above)

Part # 12695-0000

Clamp

$ 301.25 / each

Item 4
(on image above)

Part # 92000-0290

O-ring *

$ 17.67 / each

Item 5
(on image above)

Part # 7614-0005B

Impeller (standard Neoprene)

$ 118.17 / each

Item 7
(on image above)

Part # 10396-0010

Wearplate

$ 383.68 / each

Item 8
(on image above)

Part # 7749-0000

Seal

Seal *

$ 73.59 / each

Item 10
(on image above)

Part # 92701-0110

Bearing Seal

$ 18.65 / each

Item 13
(on image above)

Part # 92601-0350

Bearing

$ 110.12 / each

Item 14
(on image above)

Part # 10693-0010

Bearing Spacer (shaft)

$ 137.35 / each

Item 15
(on image above)

Part # 10449-0010

Bearing Spacer (housing)

Contact Us for Pricing

Item 17
(on image above)

Part # 9215-0000

Key

$ 10.32 / each

Item 18
(on image above)

Part # 91700-2470

Retaining Ring (shaft)

$ 5.88 / each

Item 19
(on image above)

Part # 92601-0330

Ball Bearing

$ 68.23 / each

Item 20
(on image above)

Part # 92701-0110

Bearing Seal

$ 18.65 / each

Item SK
(on image above)

Part # 90072-0005

Kit

Service Kit, c/w Impeller (standard Neoprene), Seal, O-Ring

$ 188.08 / each
