Jabsco Pump model Parts
PARTS LIST for Jabsco Pump model # Pump:
( Click Here for the Jabsco Pump 15010-0775 Product Page )

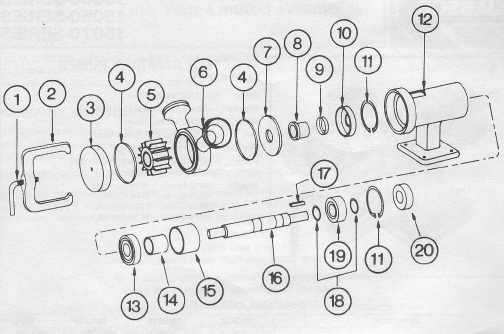

Item 1
(on image above)
Clamp Screw
$ 134.29 / each
Item 2
(on image above)
Clamp
$ 301.25 / each
Item 4
(on image above)
O-ring *
$ 17.67 / each
Item 5
(on image above)
Impeller (high pressure Neoprene)
$ 110.11 / each
Not Shown
(Not Shown on image above)
O-Ring (Clamp port)
$ 117.07 / each
Item 7
(on image above)
Wearplate
$ 383.68 / each
Item 8
(on image above)
Seal
Seal *
$ 73.59 / each
Item 10
(on image above)
Bearing Seal
$ 18.65 / each
Item 13
(on image above)
Bearing
$ 110.12 / each
Item 14
(on image above)
Bearing Spacer (shaft)
$ 137.35 / each
Item 15
(on image above)
Bearing Spacer (housing)
Contact Us for Pricing
Item 17
(on image above)
Key
$ 10.32 / each
Item 18
(on image above)
Retaining Ring (shaft)
$ 5.88 / each
Item 19
(on image above)
Ball Bearing
$ 68.23 / each
Item 20
(on image above)
Bearing Seal
$ 18.65 / each
Item SK
(on image above)
Service Kit, c/w Impeller (high pressure Neoprene), Seal, O-Ring
$ 188.08 / each
