Jabsco Pump model Parts

PARTS LIST for Jabsco Pump model # Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 15030-0675 Product Page )

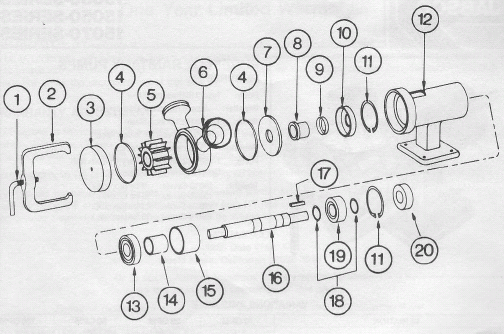

Blowup of 15030-0675

Item 1
(on image above)

Part # 9551-0010

Clamp Screw

$ 110.58 / each

Item 2
(on image above)

Part # 12698-0000

Clamp

$ 297.93 / each

Item 3
(on image above)

Part # 10515-0001

End Cover

$ 539.39 / each

Item 4
(on image above)

Part # 92000-0310

O-ring *

$ 12.95 / each

Item 5
(on image above)

Part # 8840-0005B

Impeller (high pressure Neoprene)

$ 194.98 / each

Item 7
(on image above)

Part # 10046-0010

Wearplate

$ 597.52 / each

Item 8
(on image above)

Part # 8728-0000

Seal

Seal *

$ 150.66 / each

Item 10
(on image above)

Part # 92701-0170

Bearing Seal

$ 51.91 / each

Item 11
(on image above)

Part # 91701-0260

Retaining Ring (Housing)

$ 10.41 / each

Item 13
(on image above)

Part # 92601-0340

Bearing

$ 189.80 / each

Item 14
(on image above)

Part # 10428-0010

Bearing Spacer (shaft)

$ 267.80 / each

Item 15
(on image above)

Part # 10525-0010

Bearing Spacer (housing)

$ 498.22 / each

Item 16
(on image above)

Part # 10517-0001

Shaft

$ 654.59 / each

Item 17
(on image above)

Part # 9215-0000

Key

$ 10.32 / each

Item 18
(on image above)

Part # 91700-0980

Retaining Ring (shaft)

$ 10.79 / each

Item 19
(on image above)

Part # 92601-0300

Ball Bearing

$ 56.01 / each

Item 20
(on image above)

Part # 92701-0170

Bearing Seal

$ 51.91 / each

Item SK
(on image above)

Part # 90090-0005

Kit

Service Kit, c/w Impeller (high pressure Neoprene), Seal, O-Ring

$ 244.54 / each
