Jabsco Pump model Parts( Click Here for the Jabsco Pump Product Page ) |
|

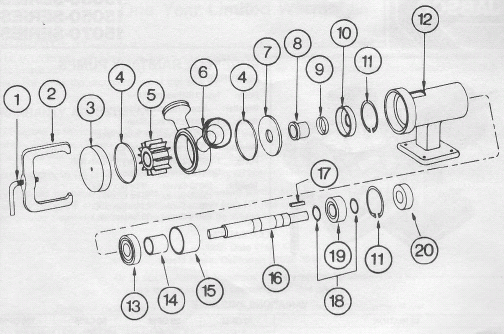

Parts Table is below the image. Scroll down for Item Listings and Prices. Products in the table are matched to the number on the image using a Item Key. |
| Parts List for Jabsco Pump model # | |||||||
| Key | Part # | Description | Price | Stock | Required | Quantity | Action |
|---|---|---|---|---|---|---|---|
| 1 | # 10697-0010 | Clamp Screw | $377.91 | 0 in Stock | 1 is Req'd | ||
| 3 | # 10299-0001 | End Cover | $1039.46 | 2 in Stock | 1 is Req'd | ||
| 4 | # 92000-0040 | O-ring * | $13.52 | 6 in Stock | 2 are Req'd | ||
| 5 | # 8983-0005B | Impeller (high pressure Neoprene) | $349.97 | 210 in Stock | 1 is Req'd | ||
| 7 | # 10276-0010 | Wearplate | $546.23 | 0 in Stock | 1 is Req'd | ||
| 8 | # 9023-0000 | Seal * | $120.56 | 45 in Stock | 1 is Req'd | ||
| 9 | # 7866-0000 | Seal Collar | $245.50 | 2 in Stock | 1 is Req'd | ||
| 10 | # 92702-0780 | Bearing Seal | $35.89 | 5 in Stock | 1 is Req'd | ||
| 11 | # 91701-2830 | Retaining Ring (Housing) | $27.25 | 0 in Stock | 2 are Req'd | ||
| 13 | # 18753-0007 | Bearing | $121.36 | 4 in Stock | 1 is Req'd | ||
| 14 | # 10539-0010 | Bearing Spacer (shaft) | $178.20 | 0 in Stock | 1 is Req'd | ||
| 15 | # 10291-0010 | Bearing Spacer (housing) | $334.95 | 0 in Stock | 1 is Req'd | ||
| 16 | # 10277-0001 | Shaft | $1278.18 | 2 in Stock | 1 is Req'd | ||
| 17 | # 9214-0000 | Key | $28.16 | 0 in Stock | 1 is Req'd | ||
| 18 | # 91700-1180 | Retaining Ring (shaft) | $11.86 | 0 in Stock | 2 are Req'd | ||
| 19 | # 18753-0007 | Ball Bearing | $121.36 | 4 in Stock | 1 is Req'd | ||
| 20 | # 92702-0780 | Bearing Seal | $35.89 | 5 in Stock | 1 is Req'd | ||
