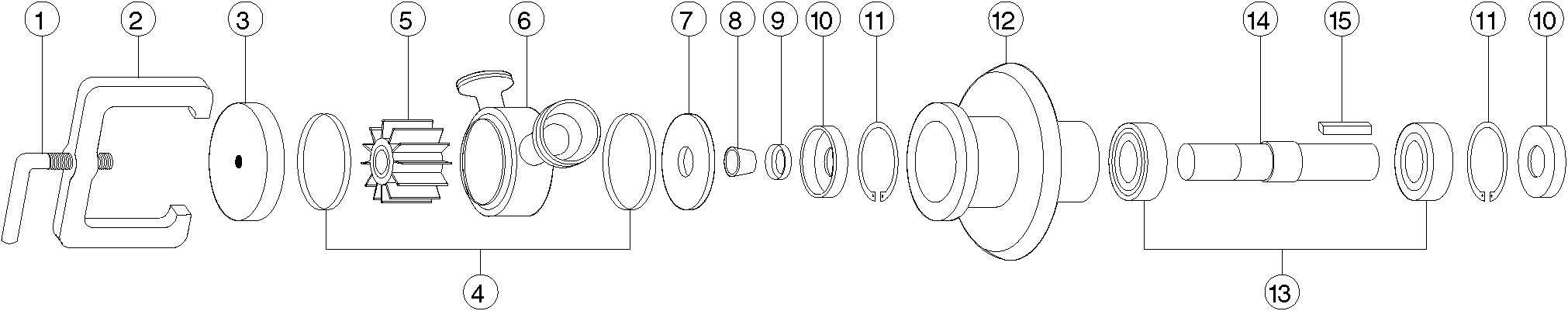

PARTS LIST for Jabsco Pump model # 15170-0005 Pump:
( Click Here for the Jabsco Pump 15170-0005 Product Page )
Item 1
(on image above)
Clamp Screw
$ 332.81 / each
Item 2
(on image above)
Clamp
$ 487.70 / each
Item 3
(on image above)
End Cover
$ 1324.30 / each
Item 4
(on image above)
O-Ring
$ 20.93 / each
Item 5
(on image above)
Impeller, Sanitary Neoprene
$ 300.78 / each
Item 6
(on image above)
Body, with 2 Inch Acme Threaded Ports
Contact Us for Pricing
Item 7
(on image above)
Wearplate
$ 931.99 / each
Item 8
(on image above)
Seal
Seal, Sanitary Carbon Face
$ 111.44 / each
Item 9
(on image above)
Seal Collar
$ 226.92 / each
Item 10
(on image above)
Bearing Seal
$ 33.18 / each
Item 11
(on image above)
Retaining Ring (Housing)
$ 16.58 / each
Item 12
(on image above)
Bearing Housing
Contact Us for Pricing
Item 13
(on image above)
Ball Bearing
$ 123.40 / each
Item 14
(on image above)
Shaft
$ 470.16 / each
Item 15
(on image above)
Key
$ 28.63 / each
Item 1015
(on image above)
Bearing Housing Assembly Complete
Contact Us for Pricing
Item SK
(on image above)
Major Overhaul Kit
Service Kit, with Impeller, O-Ring and seal
$ 439.57 / each
