Key	Part #	Description	Price	Stock	Required

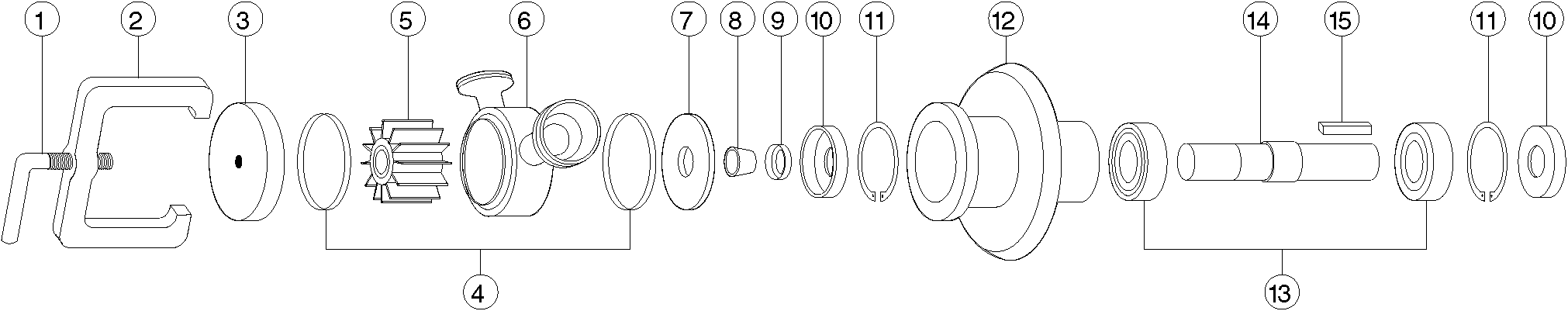

Parts List for Jabsco Pump model # 15170-7365
1	# 18024-0000	Clamp Screw	$360.02	4 in Stock	1

2	# 12927-0000	Clamp	$527.60	2 in Stock	1

3	# 10345-0001	End Cover	$1432.64	1 in Stock	1

4	# 92000-0030	O-Ring	$22.66	0 in Stock	1

5	# 8984-0005B	Impeller, Sanitary Neoprene	$325.39	252 in Stock	1

7	# 10346-0020	Wearplate	$1008.24	1 in Stock	1

8	# 9023-0000	Seal, Sanitary Carbon Face	$120.56	45 in Stock	1

9	# 7866-0000	Seal Collar	$245.50	2 in Stock	1

10	# 92702-0780	Bearing Seal	$35.89	5 in Stock	1

11	# 18726-0000	Retaining Ring (Housing)	$17.95	2 in Stock	1

13	# 18753-0007	Ball Bearing	$121.36	2 in Stock	1

14	# 18023-0000	Shaft	$508.63	1 in Stock	1

15	# 9214-0000	Key	$28.16	0 in Stock	1

SK	# 90076-0015	Service Kit, with Impeller, O-Ring and seal	$447.27	2 in Stock	1
