Jabsco Pump model 17430-0003 Parts

PARTS LIST for Jabsco Pump model # 17430-0003 Pump:

To Order Parts please Scroll down for Item Listings and Prices. Items are matched to the number on the image.

( Click Here for the Jabsco Pump 17430-0003 Product Page )

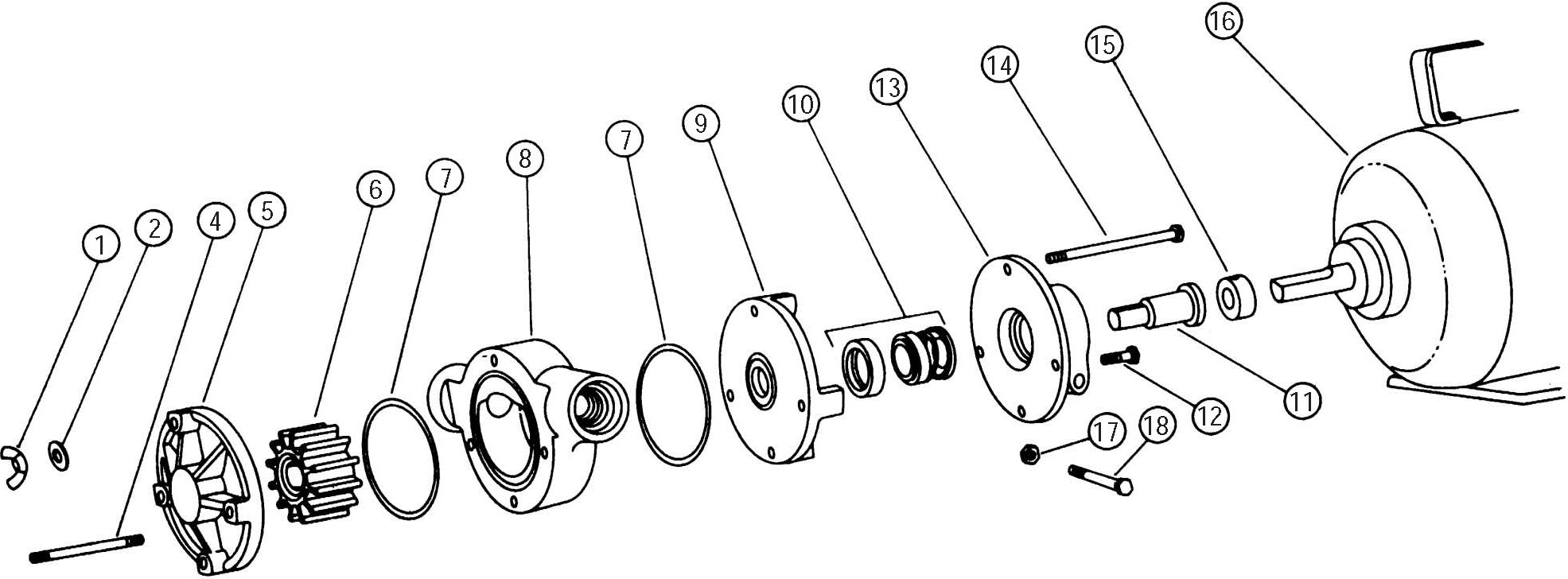

Blowup of 17430-0003

Item 1
(on image above)

Part # 91107-0030

Wing Nut

$ 5.59 / each

Item 2
(on image above)

Part # 91601-0040

Washer

$ 4.43 / each

Item 4
(on image above)

Part # 91090-0040

Stud

$ 41.79 / each

Item 5
(on image above)

Part # 17434-0000

End Cover

$ 141.50 / each

Item 6
(on image above)

Part # 14281-003

Impeller

Impeller, Nitrile

Contact Us for Pricing

Item 7
(on image above)

Part # 92000-0310

O-Ring, Nitrile

$ 11.77 / each

Item 8
(on image above)

Part # 14924-0000

Body

$ 873.44 / each

Item 9
(on image above)

Part # 14533-0010

Seal Housing

$ 194.71 / each

Item 10
(on image above)

Part # 96080-0280

Seal

Mechanical Seal Assembly, Nitrile/Carbon/Ceramic

$ 60.81 / each

Item 11
(on image above)

Part # 17006-0000

Drive Sleeve

$ 79.22 / each

Item 12
(on image above)

Part # 91095-0240

Bolt

$ 0.82 / each

Item 13
(on image above)

Part # 17433-0000

Adapter

$ 236.89 / each

Item 14
(on image above)

Part # 91094-0120

Bolt

$ 5.11 / each

Item 15
(on image above)

Part # 98022-0700

Collar

$ 22.83 / each

Item 16
(on image above)

Part # 93004-1850

Motor, 1/2HP, 115 Volt AC, 1 Phase, 1725 RPM

$ 1013.91 / each

Item 17
(on image above)

Part # 91105-0030

Nut-Adapter

$ 2.66 / each

Item 18
(on image above)

Part # 91095-0090

Bolt-Adapter

$ 11.54 / each

Item PH
(on image above)

Part # 17438-0003

Pump Head Kit

$ 1934.86 / each
